✦Lighting

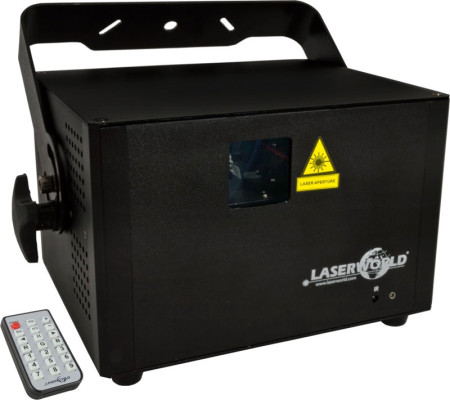

PRO-800RGB

Manufacturer
Laserworld
Model
PRO-800RGB (ProLine Series)
Code
GW-5LZ6CX
Data status
Level 1 / 3
From open sources

❋ Specs

17
Total Power Mw
total_power_mw
800mW
1
Guaranteed Power Mw
guaranteed_power_mw
700mW
1
Red power
power_red_mw
120mW
1
Green power
power_green_mw
120mW
1
Blue power
power_blue_mw
460mW
1
Wavelength Red Nm
wavelength_red_nm
637nm
1
Wavelength Green Nm
wavelength_green_nm
532nm
1
Wavelength Blue Nm
wavelength_blue_nm
445nm
1
Scan speed
scan_speed_kpps
40kpps @ 4°
1
Scan angle
scan_angle_deg
40° (80° glass/grating)
1
Beam divergence
beam_divergence_mrad
1.3mrad
1
Beam diameter
beam_diameter_mm
3mm
1
Modulation
modulation
analogue
1
Weight
weight_kg
4.45kg
1
Colours
colours
RGB (red 120mW/637nm, green 120mW/532nm, blue 460mW/445nm)
ILDA
ilda
Yes (ILDA, DMX, SD card)
Laser power
laser_power_mw
800mW
