✦Lighting

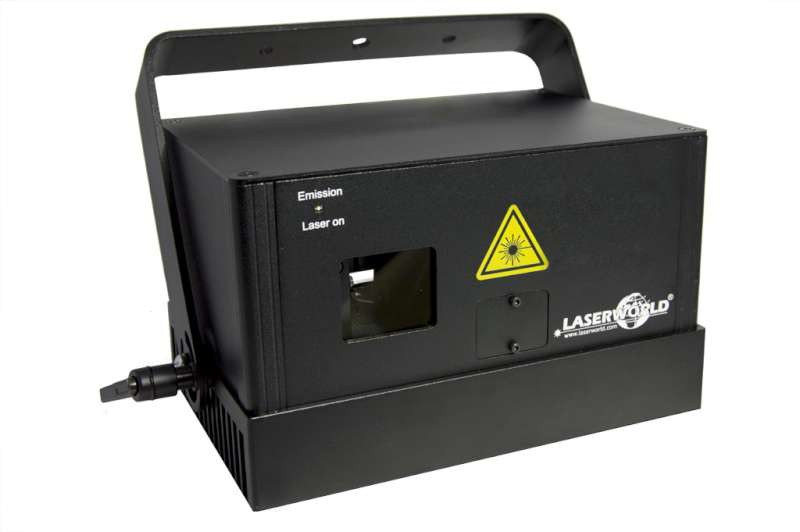

DS-1800RGB

Manufacturer
Laserworld
Model
DS-1800RGB (Diode Series)
Code
GW-Z7GJDV
Data status
Level 1 / 3
From open sources

❋ Specs

18
Total Power Mw
total_power_mw
1860mW
1
Guaranteed Power Mw
guaranteed_power_mw
1690mW
1
Red power
power_red_mw
450mW
1
Green power
power_green_mw
90mW
1
Blue power
power_blue_mw
1160mW
1
Wavelength Red Nm
wavelength_red_nm
638nm
1
Wavelength Green Nm
wavelength_green_nm
520nm
1
Wavelength Blue Nm
wavelength_blue_nm
450nm
1
Scan speed
scan_speed_kpps
40kpps @ 4°
1
Scan angle
scan_angle_deg
40°
1
Beam divergence
beam_divergence_mrad
1.3mrad
1
Beam diameter
beam_diameter_mm
3mm
1
Power consumption
power_consumption_w
120W
1
Weight
weight_kg
4.2kg
1
Colours
colours
RGB (red >450mW/638nm, green >140mW/520nm, blue >1100mW/450nm)
ILDA
ilda
Yes (ShowNET mainboard)
Laser power
laser_power_mw
1860mW
Safety class
safety_class
Class 4
