✦Lighting

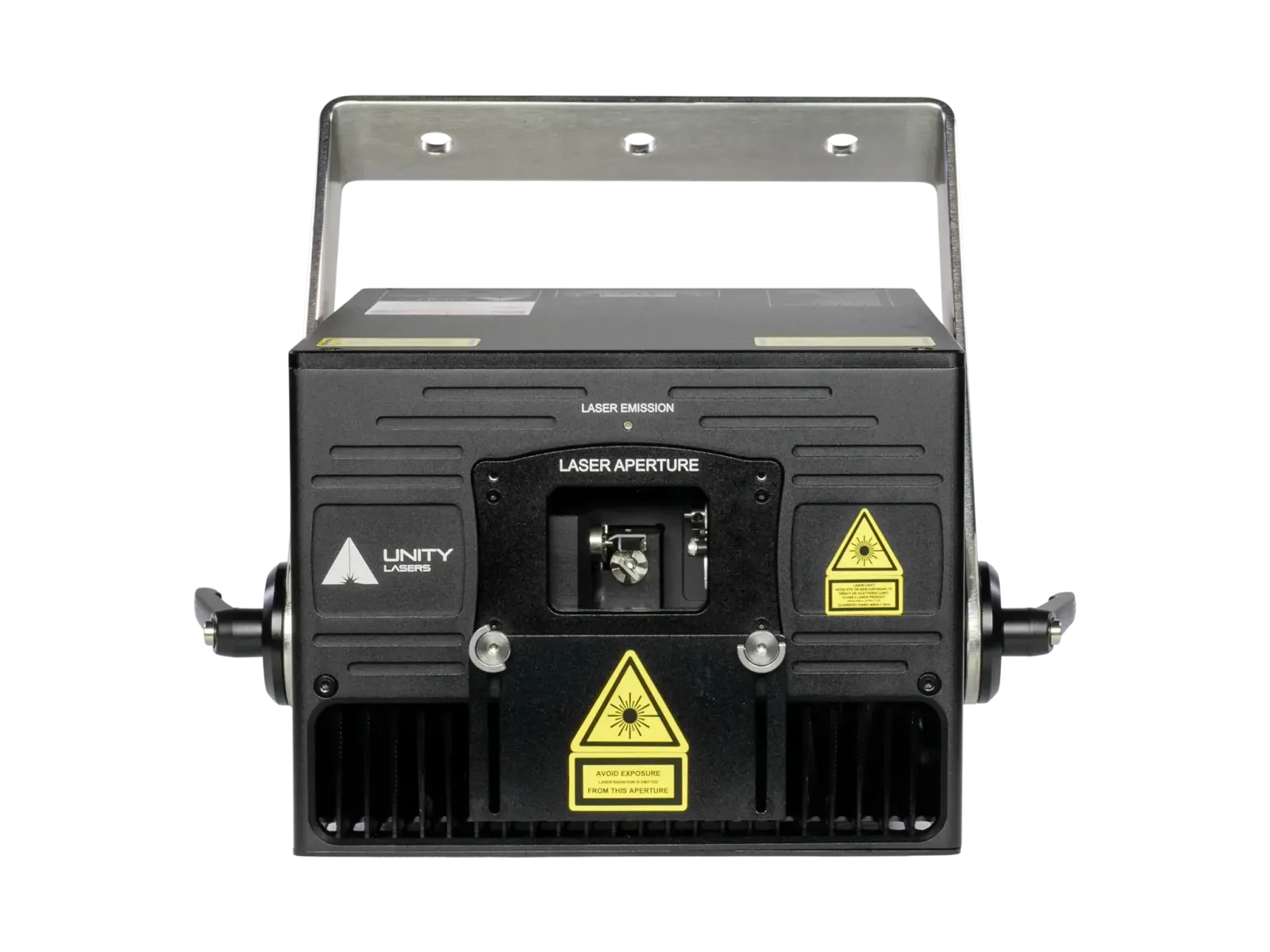

Unity ELITE 5 PRO FB4

Manufacturer
Pangolin / Unity Lasers
Model
ELITE 5 PRO FB4
Code
GW-WQH9KS
Data status
Level 1 / 3
From open sources

❋ Specs

15
Total Optical Power
total_optical_power_w
>5W
1
Power Red
power_red_w
1.8W @ 638 nm
1
Power Green
power_green_w
1.6W @ 525 nm
1
Power Blue
power_blue_w
2.0W @ 450 nm
1
Scan speed
scan_speed_kpps
35Kpps @ 8°
1
Scan angle
scan_angle_deg
45°
1
Beam Size
beam_size_mm
6 x 5mm
1
Beam divergence
beam_divergence_mrad
<1.2mrad (full angle)
1
Modulation
modulation
Analog 100 kHz
1
Input voltage (AC)
input_voltage_vac
100-240VAC 50/60 Hz
1
Power
power_w
150W max
1
Weight
weight_kg
9kg
1
Dimensions
dimensions
300 x 307 x 181 (DxWxH)mm
1
Control protocols
control_protocols
Ethernet, ArtNet, DMX, sACN, ILDA out (PC, Console, Auto, Mobile App)
1
Price
price_usd
3210USD
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
