✦Truss: Straight / Corners

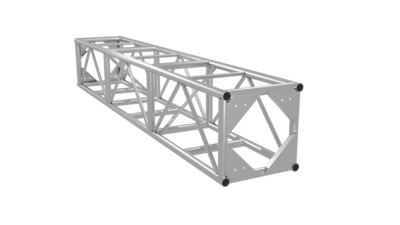

Double-Hung Pre-Rig Touring Truss 26" x 30"

Manufacturer
Tomcat
Model
TC 2630 (PRT)
Code
GW-1GQWIA
Data status
Level 1 / 3
From open sources

❋ Specs

10
Cross section
cross_section_mm
660.4 x 762 (26" x 30")mm
1
Main Chord Od In
main_chord_od_in
2in
1
Main Chord Wall In
main_chord_wall_in
1/8in
1
Diagonal Od In
diagonal_od_in
1in
1
Diagonal Wall In
diagonal_wall_in
1/8in
1
Weight
weight_kg
60 (123" section empty, TC 2630-123B)kg
1
Standard Lengths
standard_lengths
63, 93, 123in
1
Configuration
configuration
double-hung pre-rig; 63" (4 Par) and 123" (8 Par); available loaded with wired lamp bar
1
Connection
connection
equipped with bolts
1
Design Standard
design_standard
Parkhill, Smith & Cooper engineering report; ANSI E1.2
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
