✦Truss: Straight / Corners

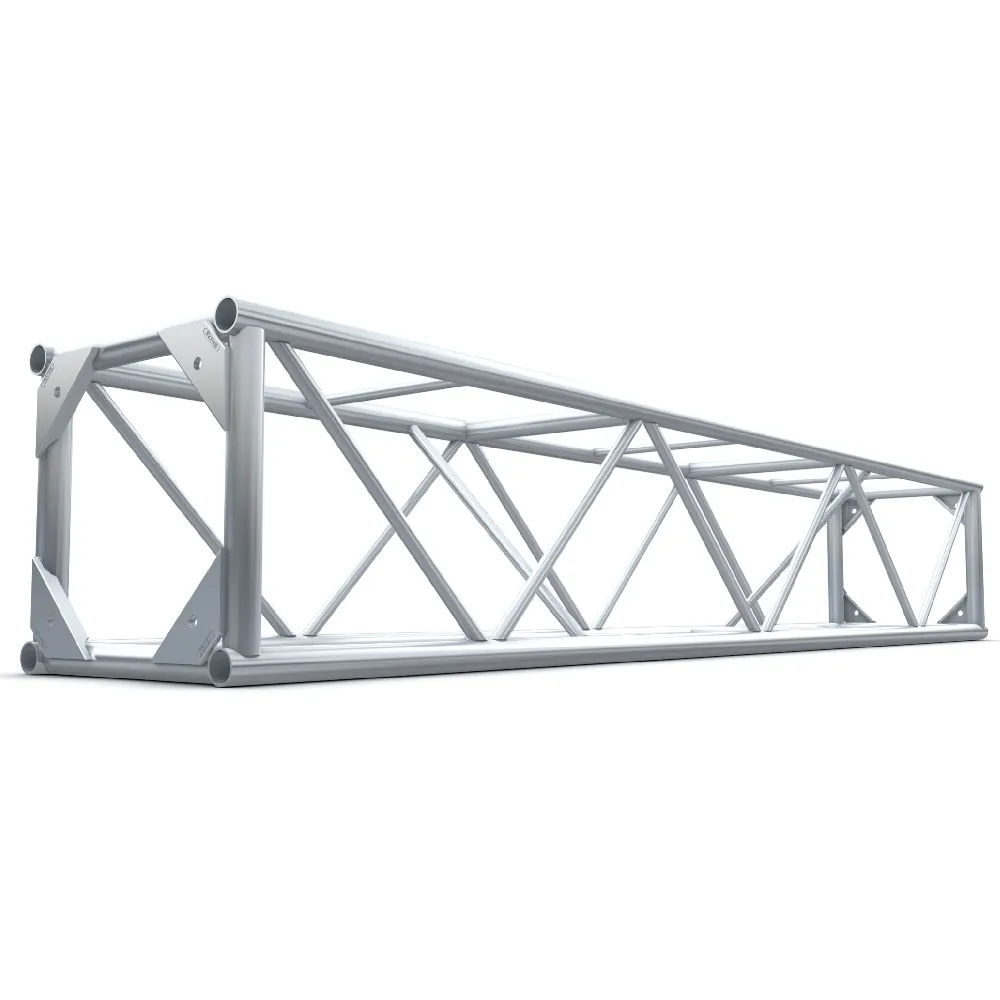

General Purpose Truss 20.5x20.5

Manufacturer
James Thomas Engineering
Model
General Purpose Truss 20.5x20.5
Code
GW-IHVII2
Data status
Level 1 / 3
From open sources

❋ Specs

9
Material
material
6061-T6 / 6082-T6 aluminium
1
Cross section
cross_section_mm
520.7mm
1
Tube outer diameter
tube_outer_diameter_mm
50.8mm
1
Wall thickness
wall_thickness_mm
3.2mm
1
Length
length_m
3.05m
1
Weight
weight_kg
39.9kg
1
Max Uniform Load Kg 3M Span
max_uniform_load_kg_3m_span
2604kg
1
Max Point Load Kg 3M Span
max_point_load_kg_3m_span
1302kg
1
Product Code
product_code
B0400 (10 ft section)
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
