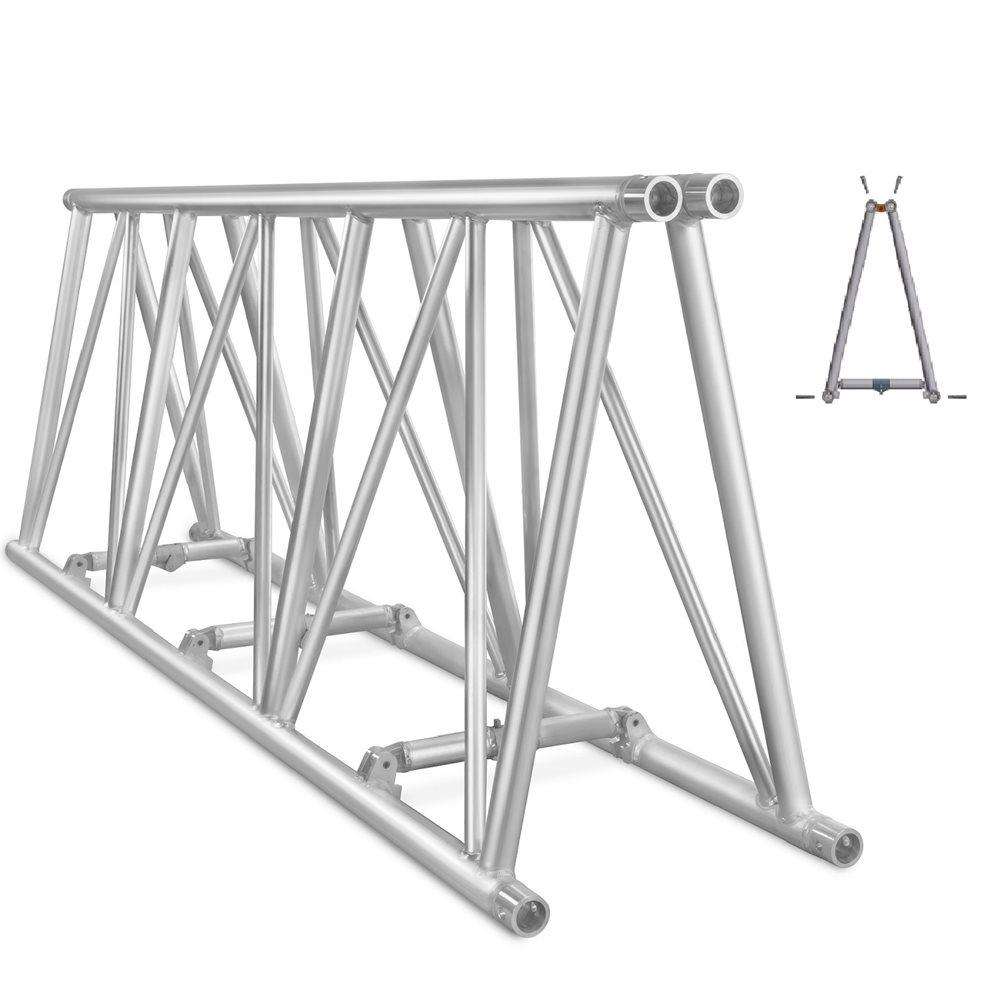

✦Truss: Straight / Corners

M950

Manufacturer
Milos
Model
M950
Code
GW-RNTAP3
Data status
Level 1 / 3
From open sources

❋ Specs

15
Cross section
cross_section_mm
580 x 1000mm
1
Main tube
main_tube_mm
60 x 6mm
1
Brace Tube
brace_tube_mm
32 x 3mm
1
Max Free Span
max_free_span_m
40m
1
Available Lengths
available_lengths_m
1 - 3m
1
Weight 1M Fold
weight_1m_fold_kg
27.00kg
1
Weight 3M Fold
weight_3m_fold_kg
59.00kg
1
Format
format
rectangular / compact folding
1
Main Chord Tube
main_chord_tube
60 x 6mm
1
Diagonal Brace Tube
diagonal_brace_tube
32 x 3 (RTT), 48 x 3 (RTTH)mm
1
Alloy
alloy
EN AW-6082 T6
1
Connection type
connection_type
super-size conical connection
1
Available Lengths
available_lengths
1 / 1.2 / 2 / 2.4 / 3m
1
Clamp Compatibility
clamp_compatibility
Cell clamp 300 series
1
Part Code Prefix
part_code_prefix
RTT / RTTH
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
