✦Truss: Straight / Corners

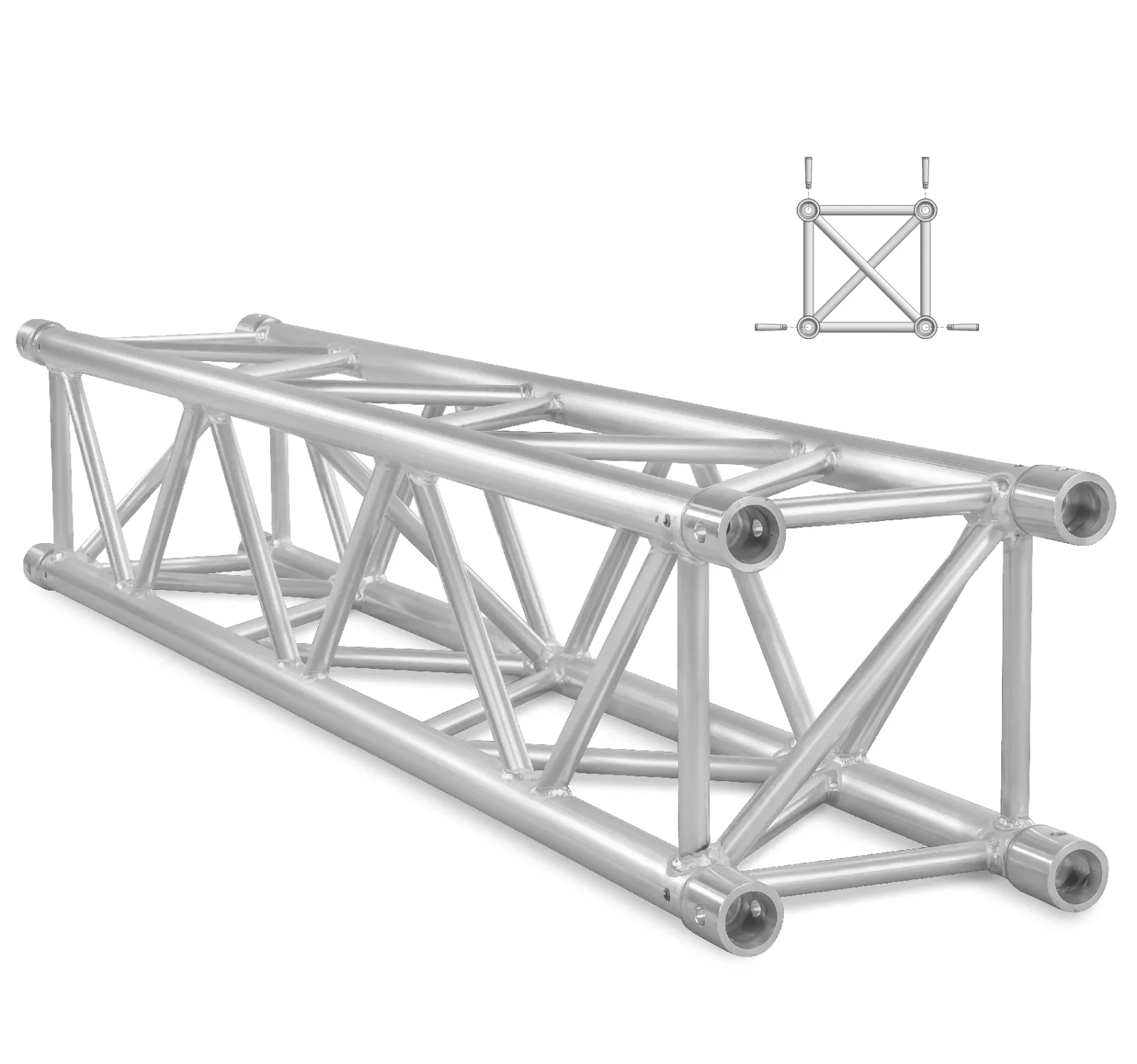

M400

Manufacturer
Milos
Model
M400
Code
GW-5MTSLV
Data status
Level 1 / 3
From open sources

❋ Specs

15
Cross section
cross_section_mm
358 x 358mm
1
Main tube
main_tube_mm
50 x 4mm
1
Brace Tube
brace_tube_mm
25 x 3mm
1
Max span
max_span_m
20m
1
Available Lengths
available_lengths_m
0.5 - 4m
1
Weight 1M
weight_1m_kg
11.40kg
1
Weight 3M
weight_3m_kg
31.10kg
1
Configuration
configuration
Quatro (square)
1
Main Chord Tube
main_chord_tube
50 x 4mm
1
Diagonal Brace Tube
diagonal_brace_tube
25 x 3mm
1
Alloy
alloy
EN AW-6082 T6
1
Connection type
connection_type
conical connection (pin holes at 90 deg to ground)
1
Available Lengths
available_lengths
0.5 - 4m
1
Part Code Prefix
part_code_prefix
QTO (Quatro) / Rect
1
Clamp Compatibility
clamp_compatibility
Cell clamp 200/400/500/600 series
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
