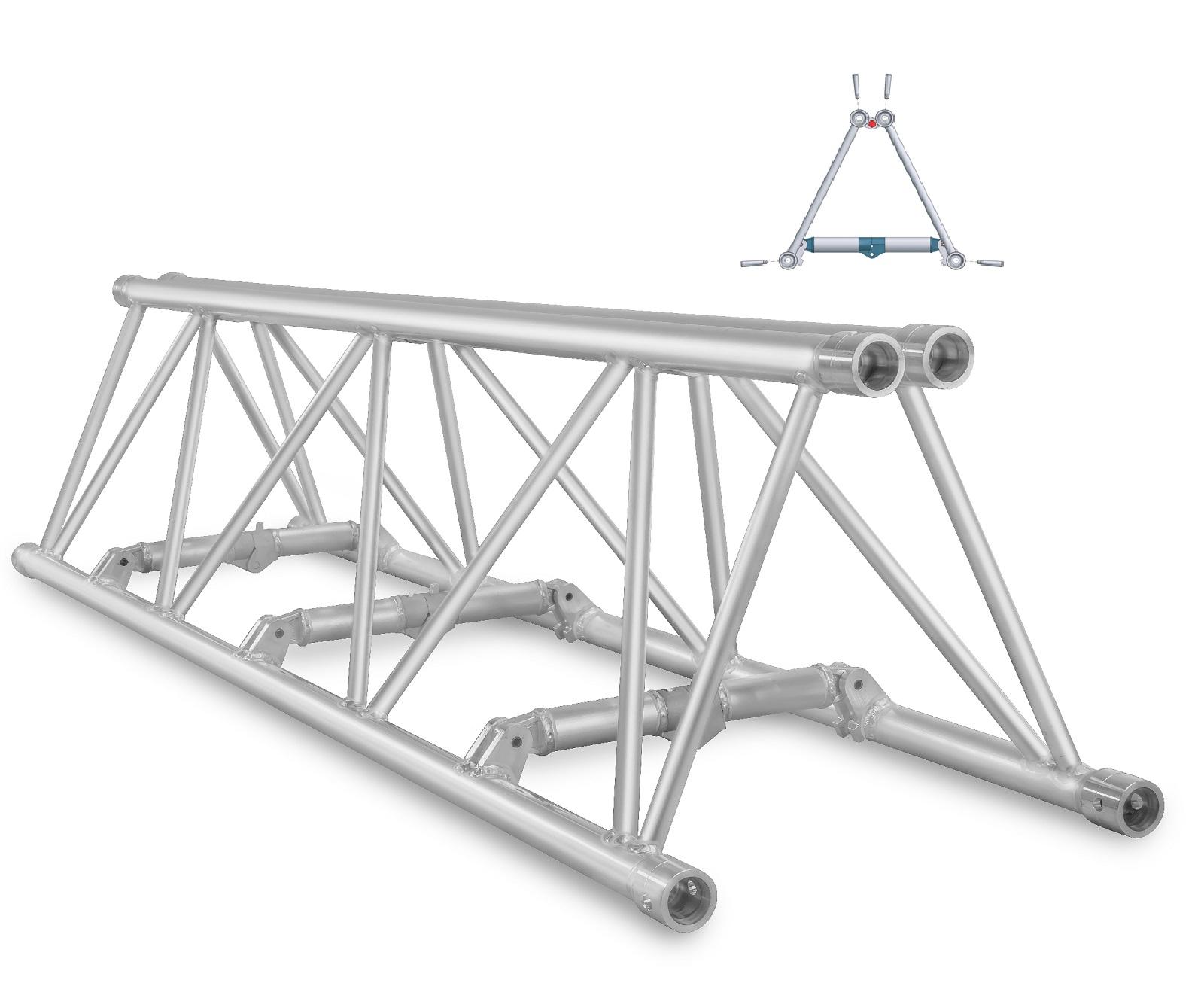

✦Truss: Straight / Corners

M520

Manufacturer
Milos
Model
M520
Code
GW-V0QZDP
Data status
Level 1 / 3
From open sources

❋ Specs

15
Cross section
cross_section_mm
579 x 529mm
1
Main tube
main_tube_mm
50 x 4mm
1
Brace Tube
brace_tube_mm
25 x 3mm
1
Max span
max_span_m
24m
1
Available Lengths
available_lengths_m
0.5 - 4m
1
Weight 1M Fold
weight_1m_fold_kg
13.00kg
1
Weight 4M Fold
weight_4m_fold_kg
41.90kg
1
Format
format
square / compact folding
1
Main Chord Tube
main_chord_tube
50 x 4mm
1
Diagonal Brace Tube
diagonal_brace_tube
24 x 3mm
1
Alloy
alloy
EN AW-6082 T6
1
Connection type
connection_type
super-size conical connection with tapered pin holes
1
Section Weight 3M
section_weight_3m_kg
49 (Quatro)kg
1
Profiles
profiles
Quatro (square) and Fold (folding)
1
Clamp Compatibility
clamp_compatibility
Cell clamp 200/400/500/600 series
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
