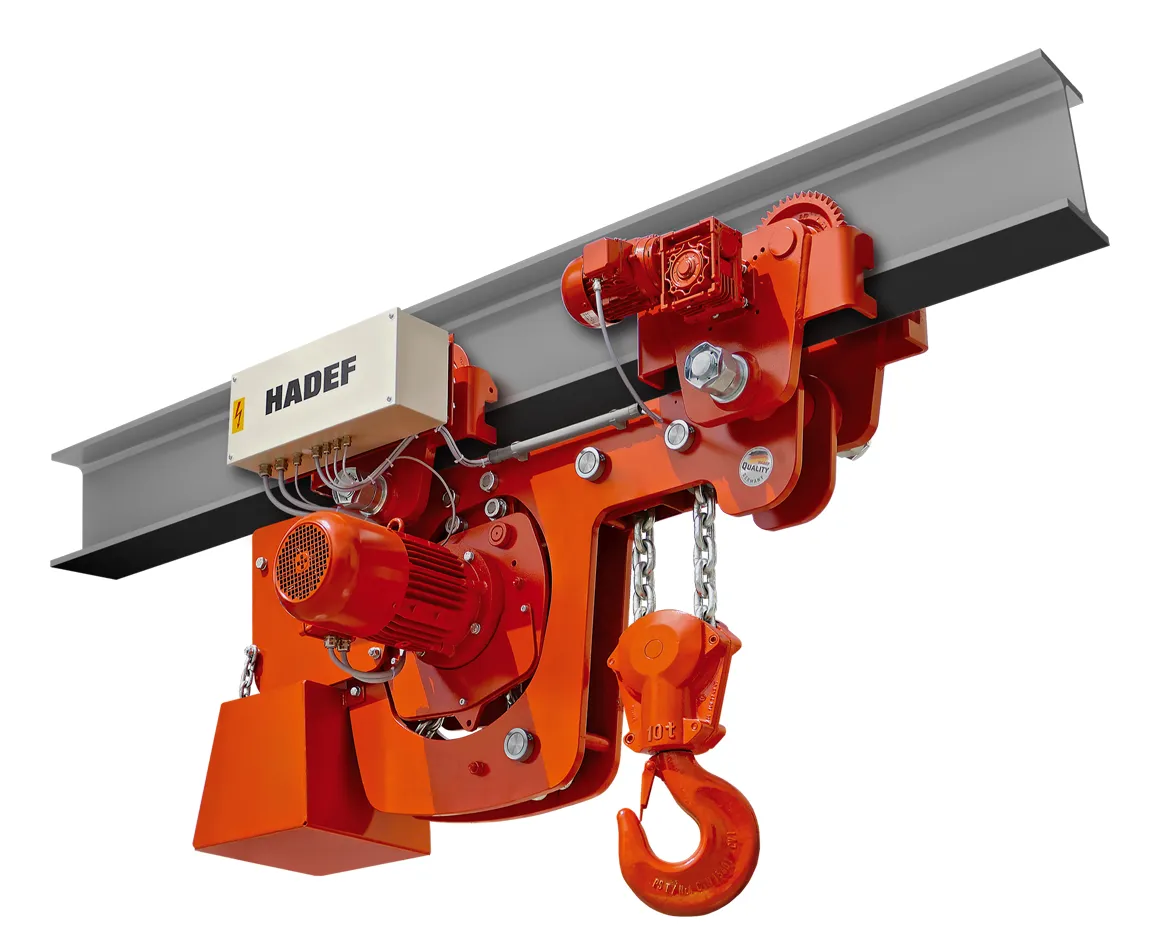

28/06 EE

Manufacturer
Hadef
Model
28/06 EE
Code
GW-NZ6SOZ
Data status
Level 1 / 3
From open sources

❋ Specs

9
Capacity range
capacity_range_kg
500 - 40000kg
1
Lifting speed
lifting_speed_m_min
0.2 - 11m/min
1
Duty Class Fem
duty_class_fem
3m/M6
1
Duty Cycle Ed Pct
duty_cycle_ed_pct
40/25%
1
Load Chain
load_chain_mm
5x15 / 7x21 / 9x27 (per capacity)mm
1
Overload Protection
overload_protection
slipping clutch up to 5000/2 kg; current cut-off from 5000/1 kg
1
Load Chain Standard
load_chain_standard
RUD load chain EN 818-7-T
1
Control
control
pendant control with emergency stop
1
Design
design
low headroom, trolley with 2 load bars
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
