✦System Processors

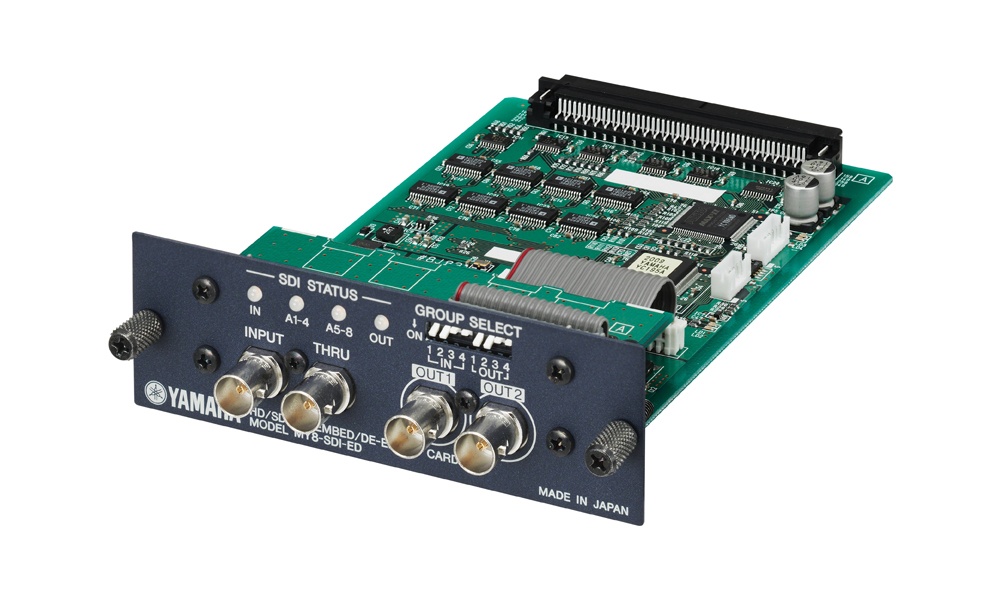

MY8-SDI-ED

Manufacturer
Yamaha
Model
MY8-SDI-ED
Code
GW-W5FL3C
Data status
Level 1 / 3
From open sources

❋ Specs

8
Channels
channels
8
1
Connectors
connectors
4x BNC (1 in, 2 out, 1 thru)
1
Type
type
HD/SD-SDI embed/de-embed card
1
Dimensions
dimensions_mm
120x40x176mm
1
Impedance
impedance_ohm
75Ω
1
Inputs
inputs
1 x BNC HD-/SD-SDI (SMPTE 292M / 259M-C)
1
Outputs
outputs
2 x BNC SDI (same signal) + 1 x BNC reclocked thru
1
Key features
key_features
24 bit / 48 kHz embedded audio; de-embed 2 of 4 groups (8 ch); LED audio status
1
