✦Staging & Structures

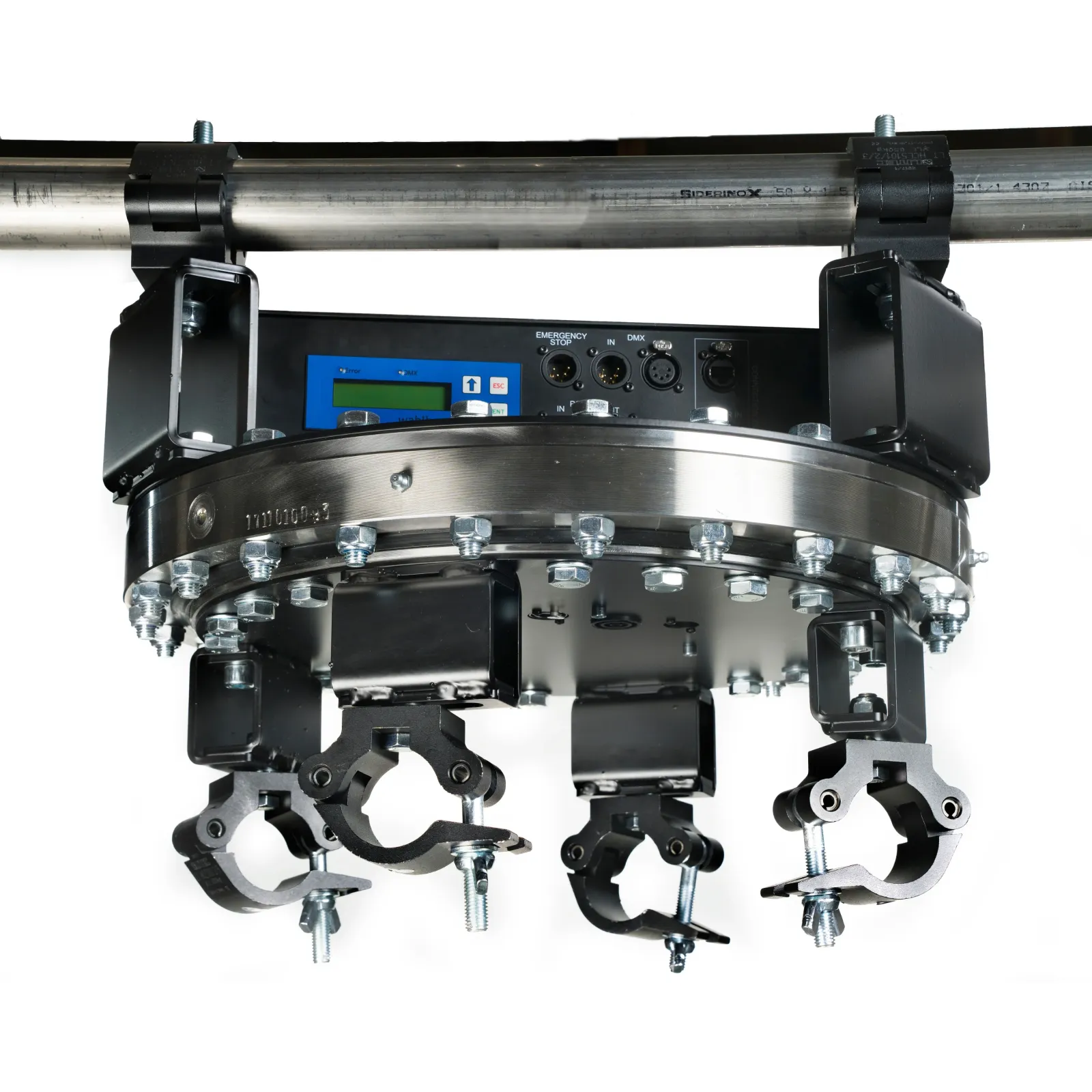

DMX Giga Rotator with Power and CAT5

Manufacturer
Wahlberg Motion Design
Model
.282
Code
GW-NDVSEE
Data status
Level 1 / 3
From open sources

❋ Specs

12
Working Load
working_load_kg
1000kg
1
Rotation Speed Rpm
rotation_speed_rpm
0.02-10rpm
1
Rotation Limit
rotation_limit
Continuous / no limit
1
Positioning Precision Deg
positioning_precision_deg
0.1deg
1
Voltage (AC)
voltage_vac
100-240VAC
1
Power
power_w
305W
1
Motor
motor
48 V, 400 W
1
DMX channels
dmx_channels
7
1
Weight
weight_kg
64.5kg
1
Dimensions
dimensions
485 x 485 x 244mm
1
Safety factor
safety_factor
2.5
1
Duty cycle
duty_cycle_percent
30%
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
