✦Point Source / Full-Range

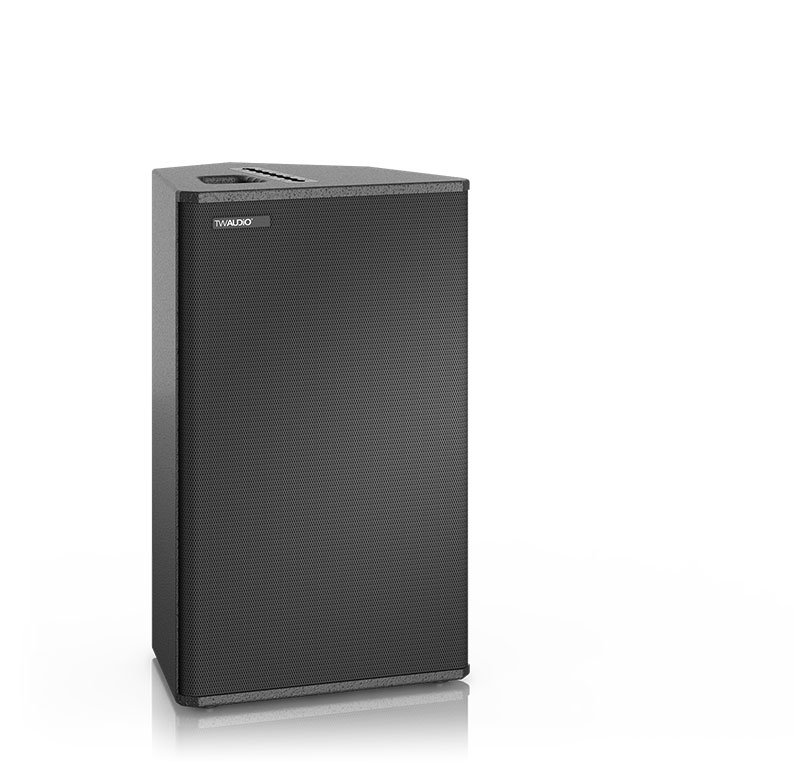

M15

Manufacturer
TW Audio
Model
M15
Code
GW-GWXJ7C
Data status
Level 1 / 3
From open sources

❋ Specs

12
Drivers
drivers
LF 1 x 15", HF 1 x 1.4"
1
Frequency range
frequency_range_hz
50-19000Hz
1
RMS power
power_rms_w
800W
1
Peak power
power_peak_w
1600W
1
Impedance
impedance_ohm
8Ω
1
Horizontal coverage
horizontal_coverage_deg
75°
1
Vertical coverage
vertical_coverage_deg
50°
1
Sensitivity
sensitivity_db
99dB
1
Max SPL
max_spl_db
131dB
1
Connectors
connectors
NL4
1
Dimensions
dimensions_mm
706x440x374mm
1
Weight
weight_kg
24.9kg
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
