✦Line Arrays

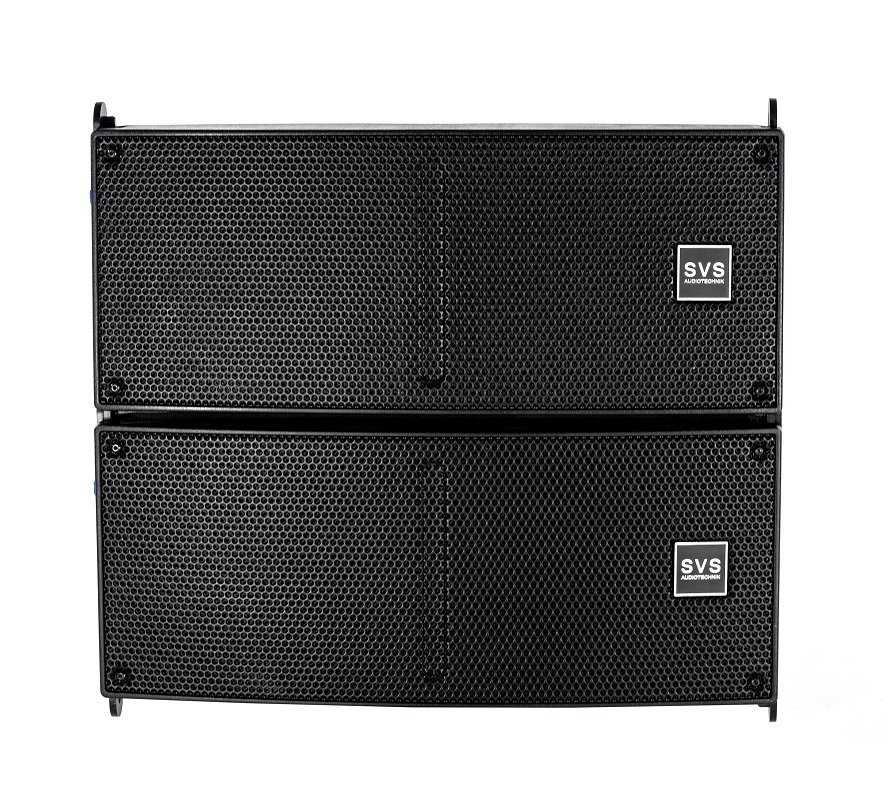

Cascade 206AP

Manufacturer
SVS Audiotechnik
Model
Cascade 206AP
Code
GW-OALNJB
Data status
Level 1 / 3
From open sources

❋ Specs

9
Frequency range
frequency_range_hz
80-20000Hz
1
Max SPL
max_spl_db
128dB
1
RMS power
power_rms_w
1000W
1
Peak power
power_peak_w
1800W
1
Horizontal coverage
horizontal_coverage_deg
90°
1
Vertical coverage
vertical_coverage_deg
12°
1
Drivers
drivers
2x6.5" LF + 2x1" HF
1
Dimensions
dimensions_mm
460x362x422mm
1
Weight
weight_kg
17.4kg
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
