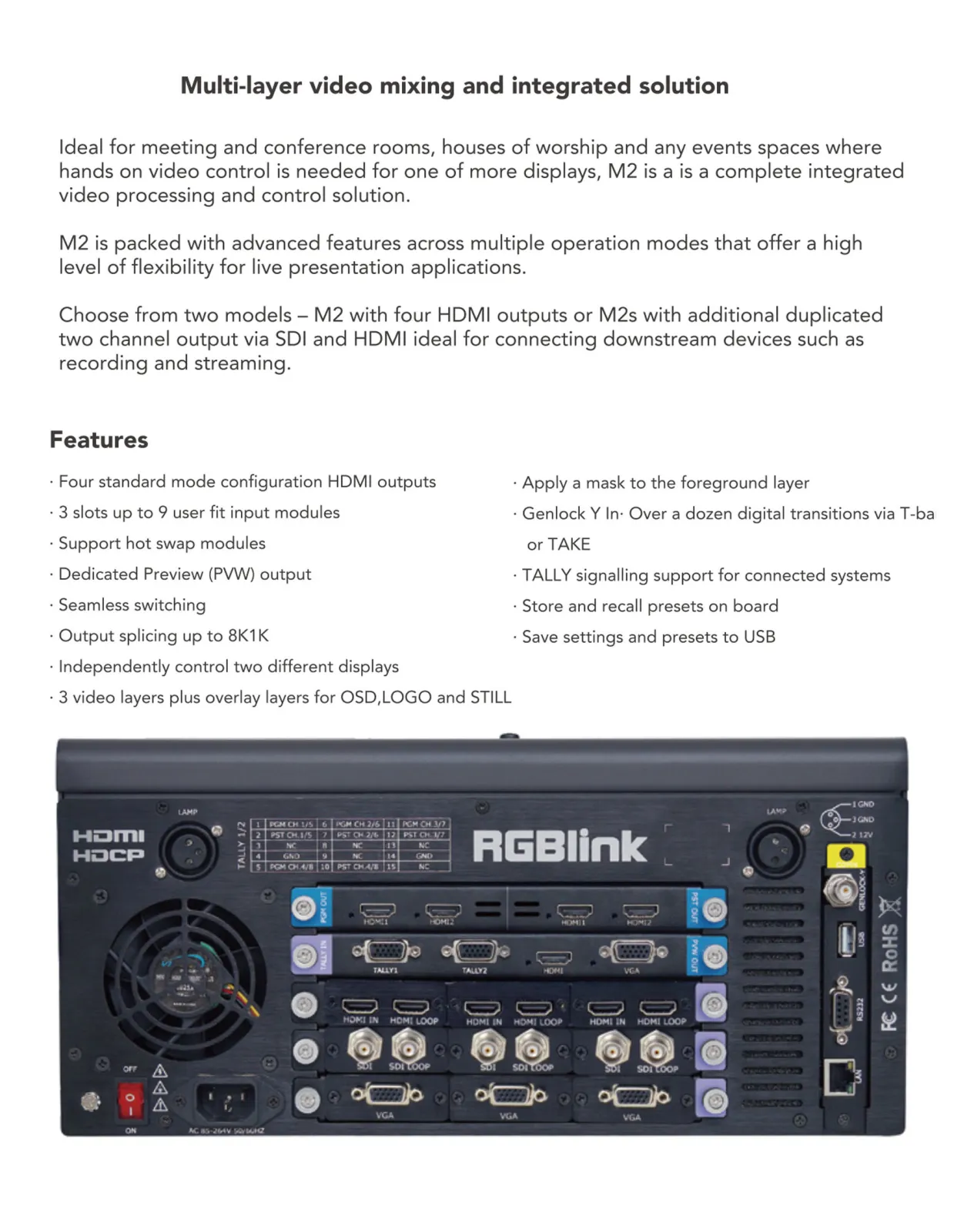

✦Video Mixers / Scalers

M2

Manufacturer
RGBlink
Model
M2
Code
GW-8VXQKH
Data status
Level 1 / 3
From open sources

❋ Specs

8
Weight
weight_kg
14.6kg
1
Dimensions
dimensions_mm
462x406x170mm
1
Power
power_w
120W
1
Inputs
inputs
3 слота, до 9 входов (модули DVI-I, 2xHDMI, DisplayPort, 2xSDI BNC, VGA, CVBS, USB)
1
Outputs
outputs
4 x HDMI-A (стандарт), опционально SDI-модуль; PVW HDMI + DSUB15
1
Max resolution
max_resolution
Режимы 2K / 4K1K / 4K2K; вход до 2048x1152@60 (VESA), выход HDMI до 1080p@60
1
Control
control
LAN RJ45, RS-232 DB9, USB, Tally 2 x DB15, Genlock
1
Power supply
power_supply
AC 85-264 V, 50/60 Hz, макс. 120 Вт
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
