✦Line Arrays

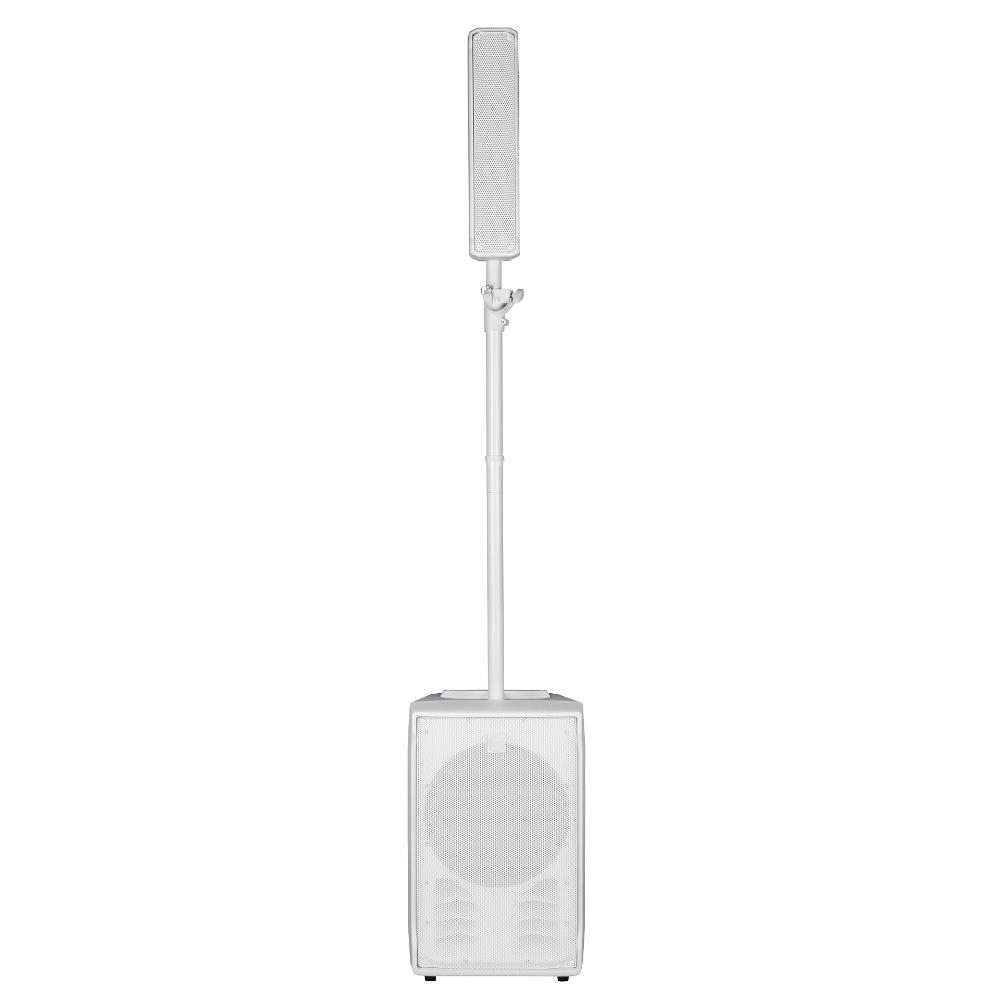

EVOX J8

Manufacturer
RCF
Model
EVOX J8
Code
GW-J7IIOS
Data status
Level 1 / 3
From open sources

❋ Specs

11
Frequency range
frequency_range_hz
40-20000Hz
1
Max SPL
max_spl_db
128dB
1
Horizontal coverage
horizontal_coverage_deg
120°
1
Vertical coverage
vertical_coverage_deg
30°
1
Peak power
power_peak_w
1400W
1
RMS power
power_rms_w
700W
1
Drivers
drivers
12" НЧ (катушка 2.5") + 8 x 2" широкополосных
1
Amplifier
amplifier
Class D, 1400 Вт пик (НЧ 1000 / ВЧ 400)
1
Connectors
connectors
XLR/джек (вход), XLR (выход)
1
Dimensions
dimensions_mm
2285 x 400 x 460mm
1
Weight
weight_kg
20.2kg
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
