✦Line Arrays

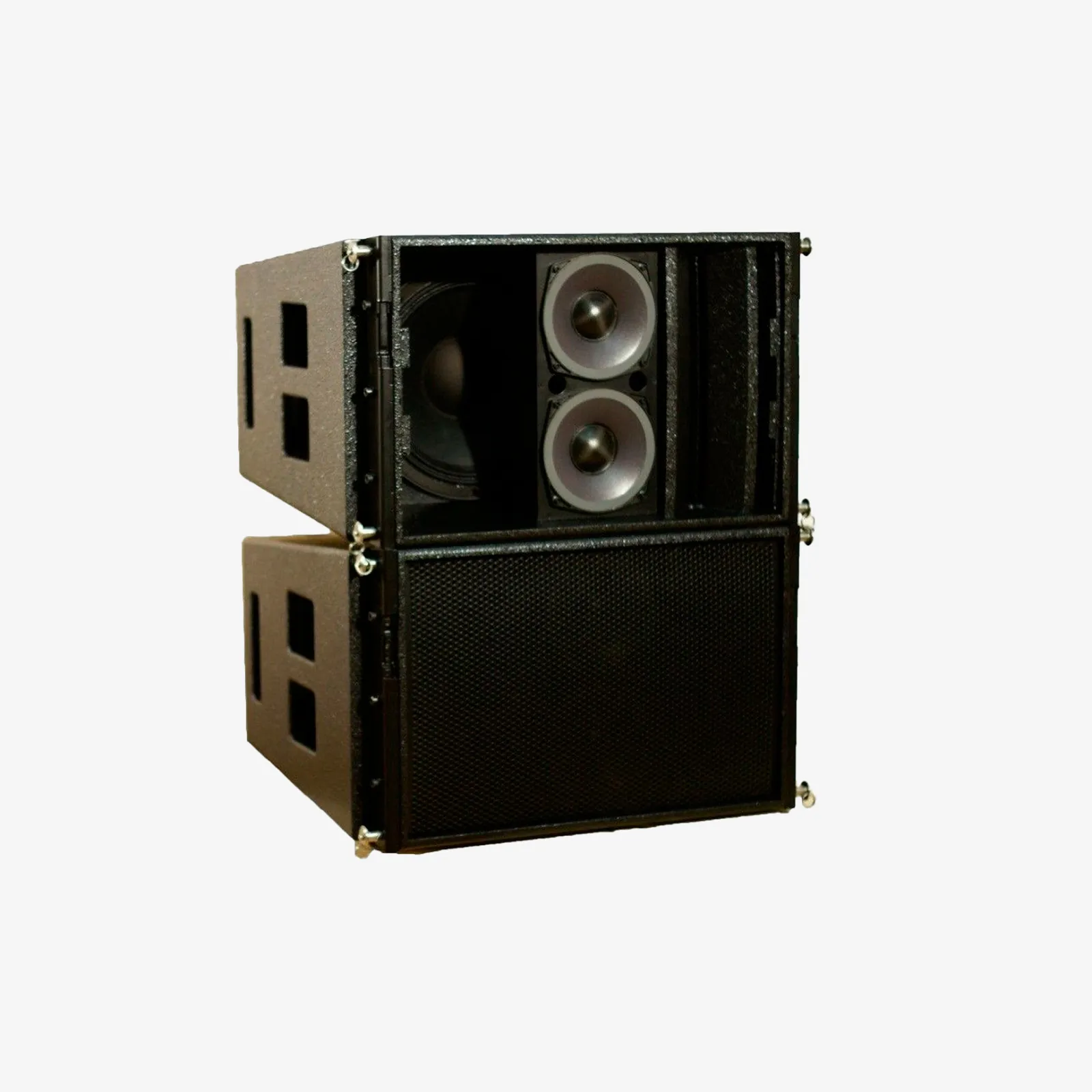

DW123

Manufacturer
ProTone
Model
DW123
Code
GW-QQ20LR
Data status
Level 1 / 3
From open sources

❋ Specs

10
Weight
weight_kg
38kg
1
Frequency range
frequency_range_hz
80-18000Hz
1
Dimensions
dimensions_mm
640x390x500mm
1
Power
power_w
500W
1
Drivers
drivers
НЧ 1 x 12", СЧ 2 x 6,5", ВЧ 1 x 2" (компрессионный)
1
Dispersion
dispersion_deg
90 x 10°
1
Sensitivity
sensitivity_db
97 / 100 / 115dB
1
Max SPL
max_spl_db
124 / 124 / 135dB
1
Nominal impedance
nominal_impedance_ohm
8 / 8 / 8Ω
1
Connectors
connectors
2 параллельных Neutrik Speakon NL8
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
