✦DJ Mixers

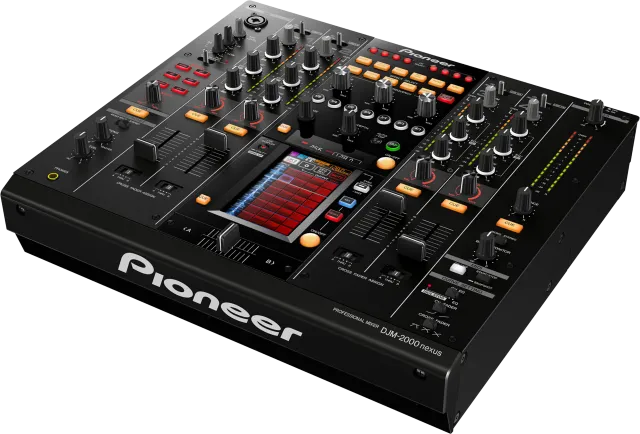

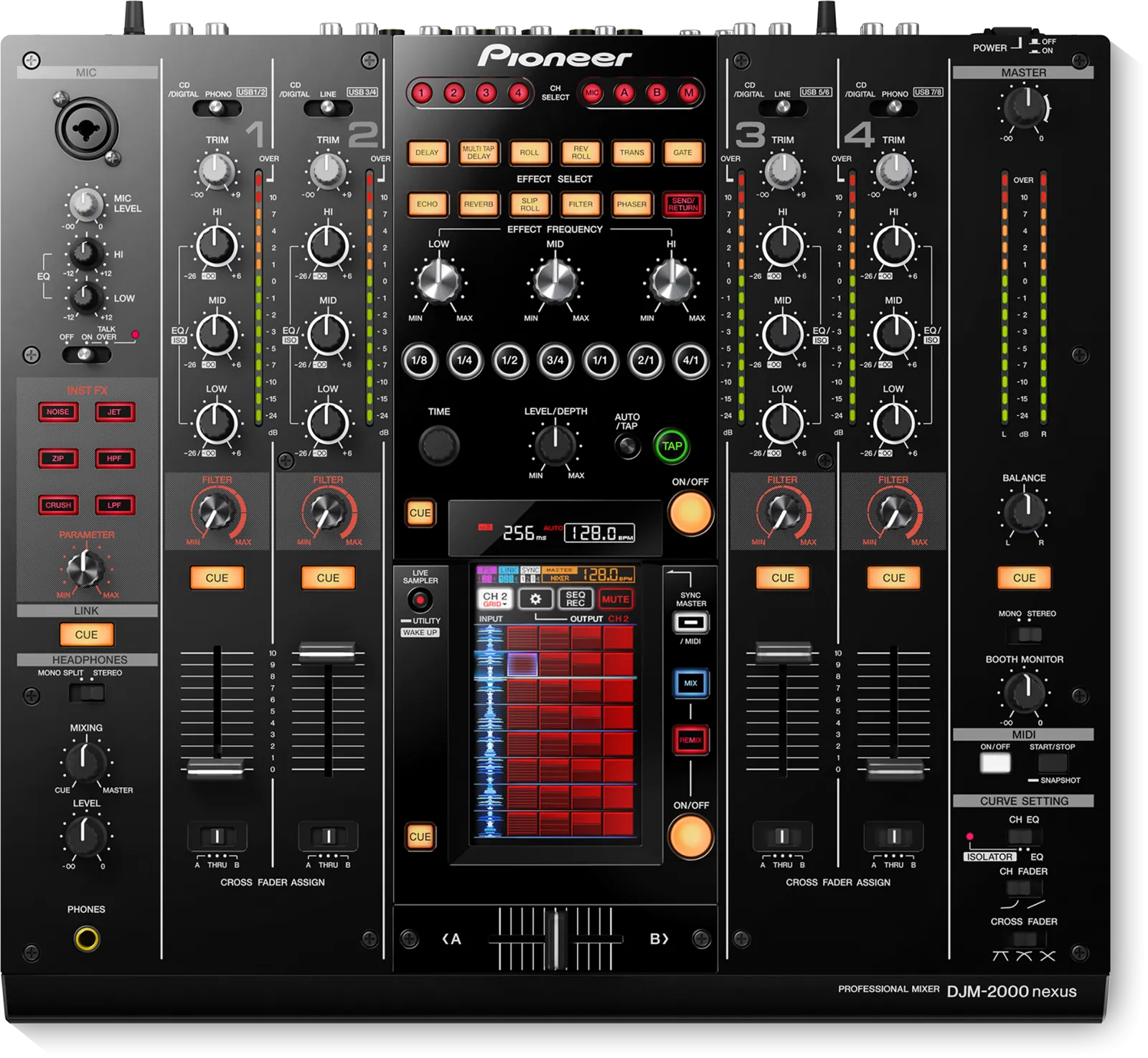

DJM-2000NXS

Manufacturer
Pioneer DJ
Model
DJM-2000NXS
Code
GW-C49OQK
#Pro DJ Link#touchscreen#discontinued#club mixer
Data status
Level 1 / 3
From open sources

❋ Specs

30
Channels
channels
4
1
Effects
effects
Beat Slice, Frequency Remix, Side Chain Remix, Quantized Beat FX
1
Connectivity
connectivity
USB audio interface (type B), 6 × LAN 100Base-TX (Pro DJ Link), MIDI OUT, 2 × CONTROL (3.5 mm)
1
Crossfader type
crossfader_type
Magvel
1
Software compatibility
software_compatibility
rekordbox
1
Release year
release_year
2013
1
Weight
weight_kg
8.6kg
1
Width
width_mm
430mm
1
Height
height_mm
107.9mm
1
Depth
depth_mm
404mm
1
Power supply
power_supply
AC 220–240 V, 50/60 Hz
1
Power consumption
power_consumption_w
42W
1
Operating temperature
operating_temperature_c
+5 to +35°C
1
Frequency range
frequency_range_hz
20 - 20000Hz
1
Sampling rate
sampling_rate_khz
96kHz
1
Bit depth
bit_depth
24bit
1
Signal-to-noise ratio
signal_to_noise_db
107 (CD/Line) · 93 (Phono) · 85 (Mic)dB
1
THD
thd
0.004%
1
Crosstalk
crosstalk_db
82dB
1
EQ bands
eq_bands
3
1
EQ type
eq_type
3-band: HI 13 kHz / MID 1 kHz / LOW 70 Hz, −26 to +6 dB
1
Line inputs
line_inputs
2
1
Phono inputs
phono_inputs
2
1
Mic inputs
mic_inputs
1
1
USB ports
usb_ports
1
1
MIDI ports
midi_ports
1
1
Input connectors
input_connectors
4 × CD (RCA), 2 × LINE (RCA), 2 × PHONO (RCA), 4 × DIGITAL IN (coaxial RCA), MIC (XLR / 6.3 mm), RETURN (6.3 mm)
1
Output connectors
output_connectors
MASTER1 (XLR), MASTER2 (RCA), BOOTH (6.3 mm), REC (RCA), SEND (6.3 mm), DIGITAL OUT (coaxial RCA), PHONES (6.3 mm), MIDI OUT (5P DIN)
1
Headphone output
headphone_output
Stereo phone jack 6.3 mm, +8.5 dBu / 32 Ω
1
Display
display_size_inch
5.8inch
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
