✦Lighting

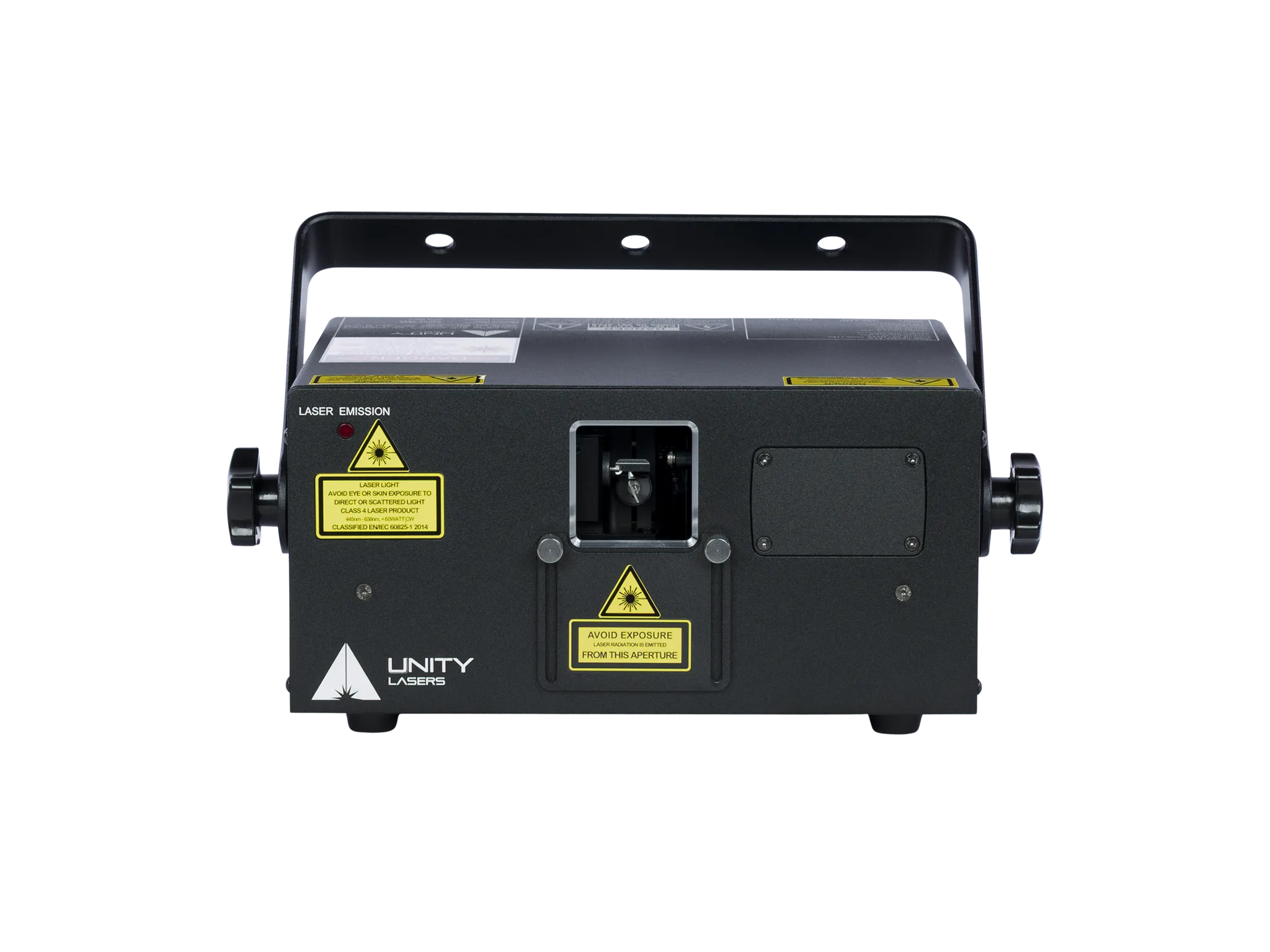

Unity RAW 3 FB4

Manufacturer
Pangolin / Unity Lasers
Model
RAW 3 FB4
Code
GW-QE5HI1
Data status
Level 1 / 3
From open sources

❋ Specs

22
Guaranteed Optical Output
guaranteed_optical_output_w
3W
1
Power R Mw
power_r_mw
500mW
1
Power G Mw
power_g_mw
800mW
1
Power B Mw
power_b_mw
1700mW
1
Wavelengths Rgb Nm
wavelengths_rgb_nm
638 / 525 / 455nm
1
Scan speed
scan_speed_kpps
30 @ 8°kpps
1
Scan angle
scan_angle_deg
40°
1
Beam divergence
beam_divergence_mrad
<1.1mrad
1
Beam Size
beam_size_mm
5 x 3mm
1
Modulation Khz
modulation_khz
Analog 50kHz
1
Power consumption
power_consumption_w
100W
1
Weight
weight_kg
5.3kg
1
Dimensions
dimensions
238 x 192 x 126 (DxWxH)mm
1
Total Optical Power
total_optical_power_w
>3W
1
Red power
power_red_mw
500mW @ 638 nm
1
Green power
power_green_mw
800mW @ 525 nm
1
Blue power
power_blue_mw
1700mW @ 455 nm
1
Modulation
modulation
Analog 50 kHz
1
Input voltage (AC)
input_voltage_vac
100-230VAC 50/60 Hz
1
Power
power_w
100W max
1
Control protocols
control_protocols
FB4 DMX [Ethernet, ArtNet, DMX, sACN, ILDA out]
1
Price
price_usd
2174USD
1
