✦System Processors

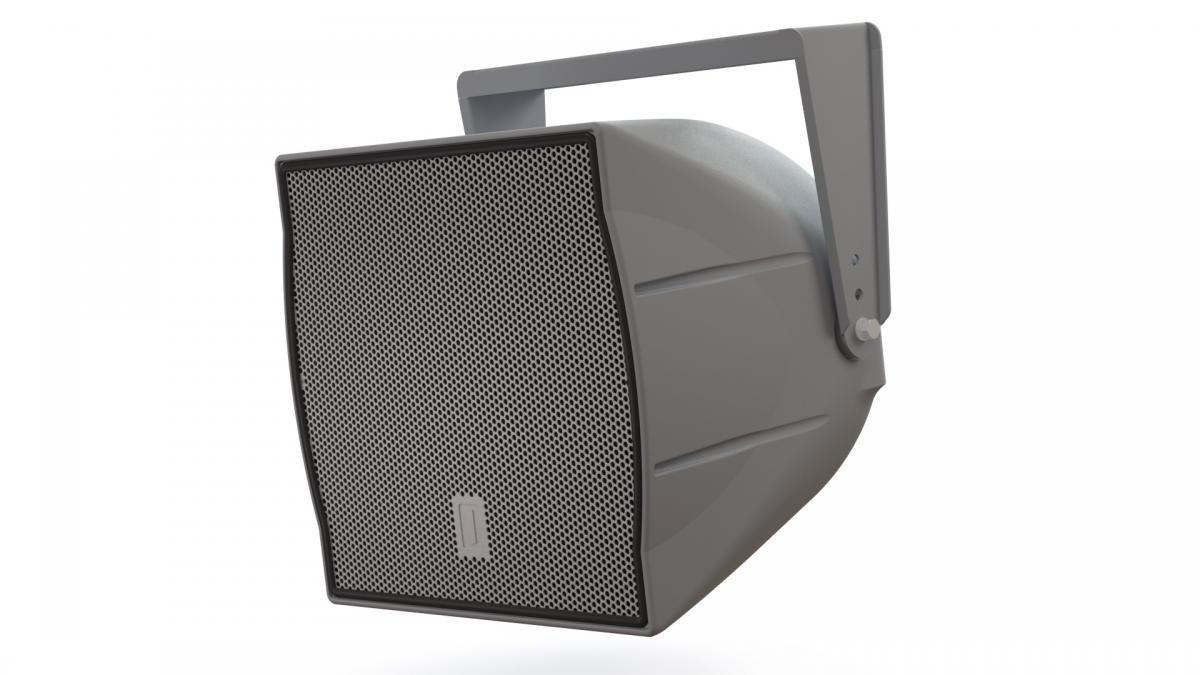

ONE.SP12D

Manufacturer
One Systems
Model
ONE.SP12D
Code
GW-P205YV
Data status
Level 1 / 3
From open sources

❋ Specs

11
Frequency range
frequency_range_hz
90-14000 (+/-3 dB)Hz
1
Max SPL
max_spl_db
130 continuous / 136 peakdB
1
Continuous power
power_continuous_w
600W
1
Program power
power_program_w
1200W
1
Peak power
power_peak_w
2400W
1
Nominal impedance
nominal_impedance_ohm
8ohm
1
Coverage pattern
coverage_pattern_deg
60x40degrees
1
LF driver
lf_driver_in
12 (3-inch voice coil)inch
1
HF driver
hf_driver
3-inch pure-titanium-diaphragm compression driver
1
Weight
weight_kg
22kg
1
Dimensions
dimensions
407.8 x 407 x 464mm (HxWxD)
1
