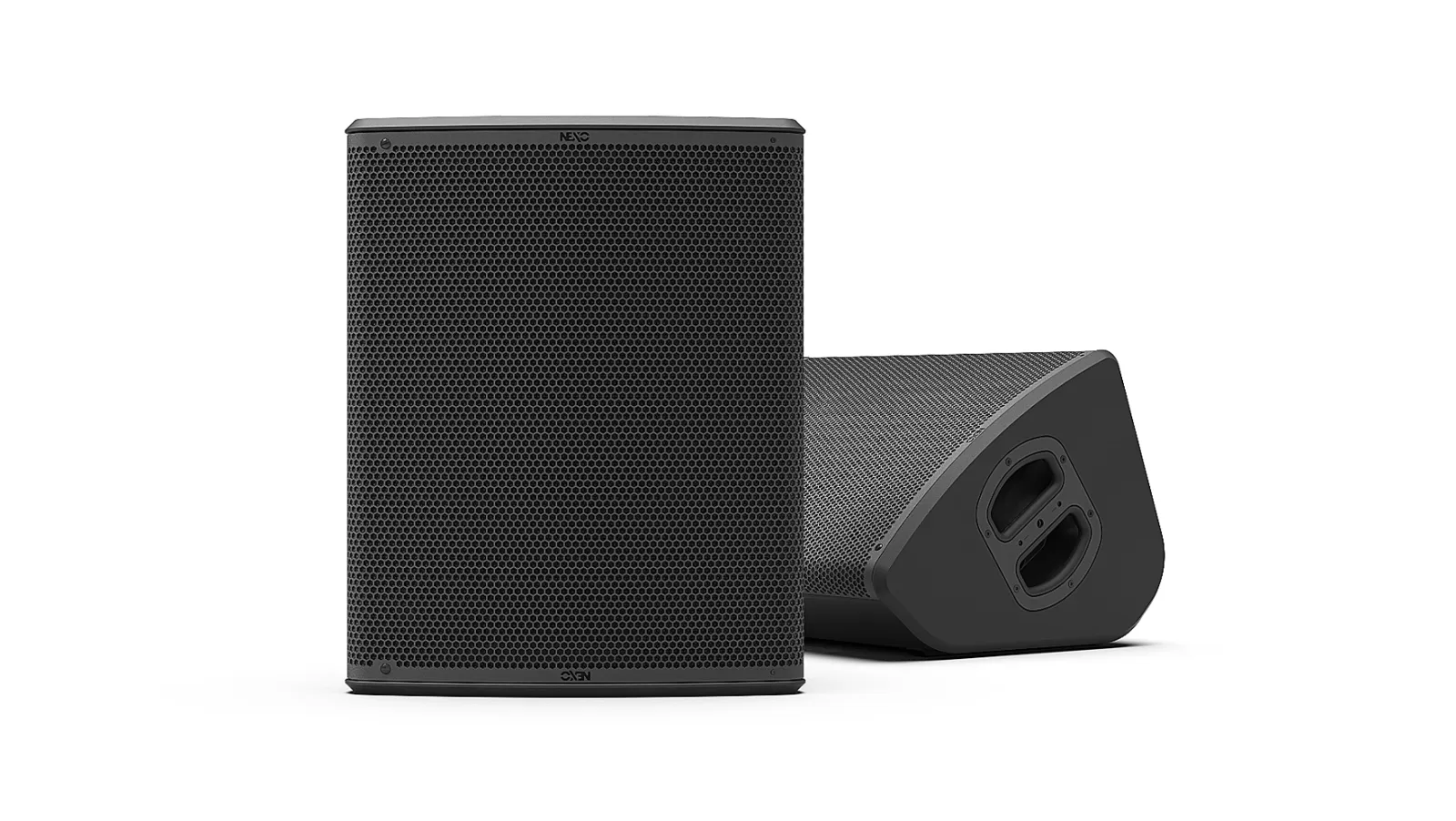

✦Point Source / Full-Range

P15

Manufacturer
Nexo
Model
P15
Code
GW-OX7NY8
Data status
Level 1 / 3
From open sources

❋ Specs

10
Configuration
configuration
2-way coaxial point source, switchable passive/active
1
Drivers
drivers
1x coaxial Neodymium: LF 15" 8 Ohm long-excursion + HF 3" 8 Ohm
1
Frequency range
frequency_range_hz
57-20000Hz
1
Max SPL
max_spl_db
139 (passive) / 141 (active)dB
1
Sensitivity
sensitivity_db
108 nominal (1W@1m)dB
1
Dimensions
dimensions
600 x 483 x 352 (HxWxD)mm
1
Weight
weight_kg
23kg
1
Dispersion
dispersion_deg
60x60 (default), 90x40 (flange), 50~90x40
1
Amplifier
amplifier
Active: 800-1350 W LF + 400-630 W HF; Passive: 800-1350 WW
1
Recommended amplifier
recommended_amplifier
NEXO NXAMP4x1mk2 / NXAMP4x2mk2 / NXAMP4x4mk2 (or DTD + DTDAMP4x0.7)
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.

❋ Compatibility

Amplifiers
NXAMP4x1mk2GW-VOLAF0NXAMP4x2mk2GW-VYNKFENXAMP4x4mk2GW-ELDARVDTDGW-TOPJWO

NEXO NXAMP4x1mk2 / NXAMP4x2mk2 / NXAMP4x4mk2 (or DTD + DTDAMP4x0.7)
