✦Line Arrays

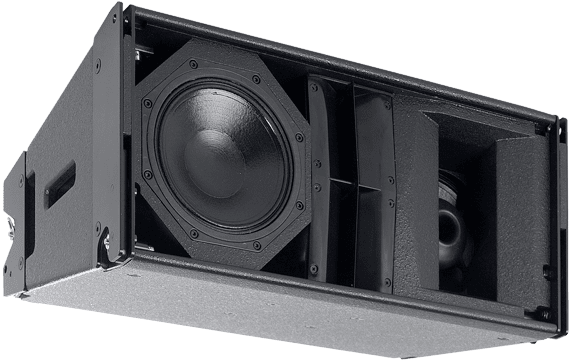

W8LMD

Manufacturer
Martin Audio
Model
W8LMD
Code
GW-7IZ2GC
Data status
Level 1 / 3
From open sources

❋ Specs

9
Frequency range
frequency_range_hz
60-18000Hz
1
Power
power_w
400W
1
Peak power
power_peak_w
1600W
1
Impedance
impedance_ohm
12Ω
1
Max SPL
max_spl_db
131dB
1
Horizontal coverage
horizontal_coverage_deg
120°
1
Vertical coverage
vertical_coverage_deg
20°
1
Dimensions
dimensions_mm
620x284x400mm
1
Weight
weight_kg
30kg
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
