✦DMX networking: nodes, splitters, wireless DMX

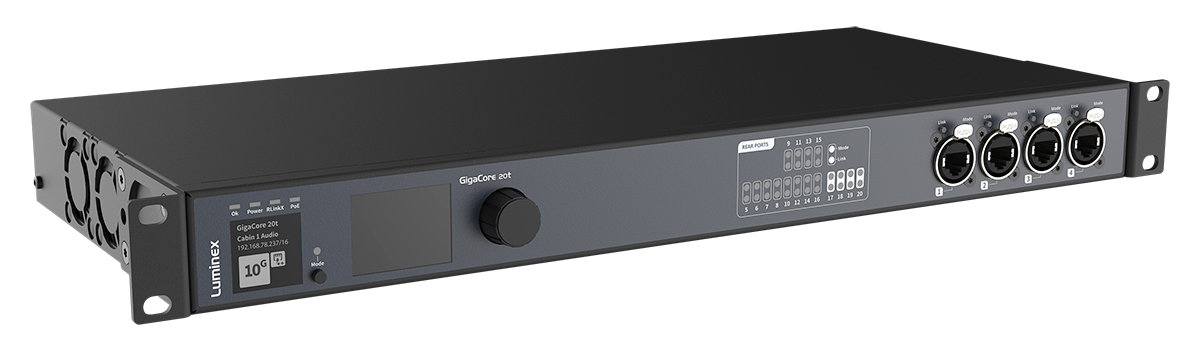

GigaCore 20t

Manufacturer
Luminex Network Intelligence
Model
LU 01 00080
Code
GW-AHSGXD
Data status
Level 1 / 3
From open sources

❋ Specs

11
Ports Ethercon
ports_ethercon
8ports
1
Ports Rj45
ports_rj45
8ports
1
Ports Sfp Plus
ports_sfp_plus
4cages
1
Network Speed Gbps
network_speed_gbps
10Gbps
1
Switching Capacity Gbps
switching_capacity_gbps
112Gbps
1
Poe Budget
poe_budget_w
500W
1
Power
power_w
510W
1
Power supply voltage
power_supply_v
100-240VAC
1
Weight
weight_kg
4kg
1
Dimensions
dimensions
482 x 204.1 x 44mm
1
Rack units
rack_units
1U
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
