✦Truss: Straight / Corners

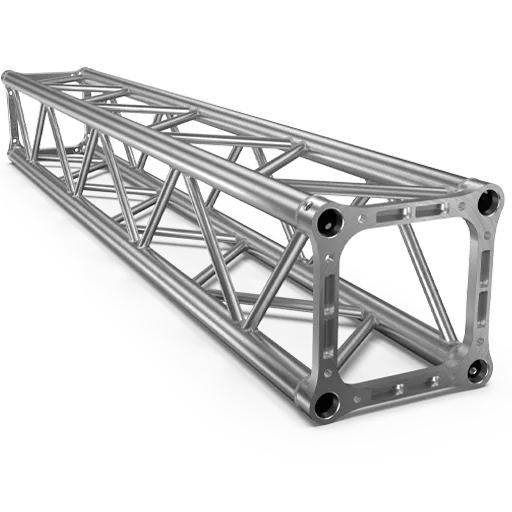

QH30SA

Manufacturer
Litec
Model
QH30SA
Code
GW-QZXLBI
Data status
Level 1 / 3
From open sources

❋ Specs

11
Dimensions
dimensions_mm
290 x 290mm
1
Chord Tube
chord_tube_mm
48 x 3mm
1
Diagonal Tube
diagonal_tube_mm
20 x 2mm
1
Material
material
aluminium, anti-torsion design, increased wall thickness vs QX30SA
1
Connectors
connectors
die-cast aluminium end plates, dual connection mode
1
Classification
classification
Heavy-Duty line - identical external size to QX30SA, higher structural capacity
1
Cross section
cross_section_mm
290 x 290 (29 cm sides)mm
1
Material alloy
material_alloy
EN AW 6082 T6 (end plates EN AC 42200 T6)
1
Connection system
connection_system
quick-fit conical or nut-and-bolt
1
Section Type
section_type
square, twist-resistant heavy duty
1
Replaces
replaces
QD30S / QD30SA series
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
