✦Point Source / Full-Range

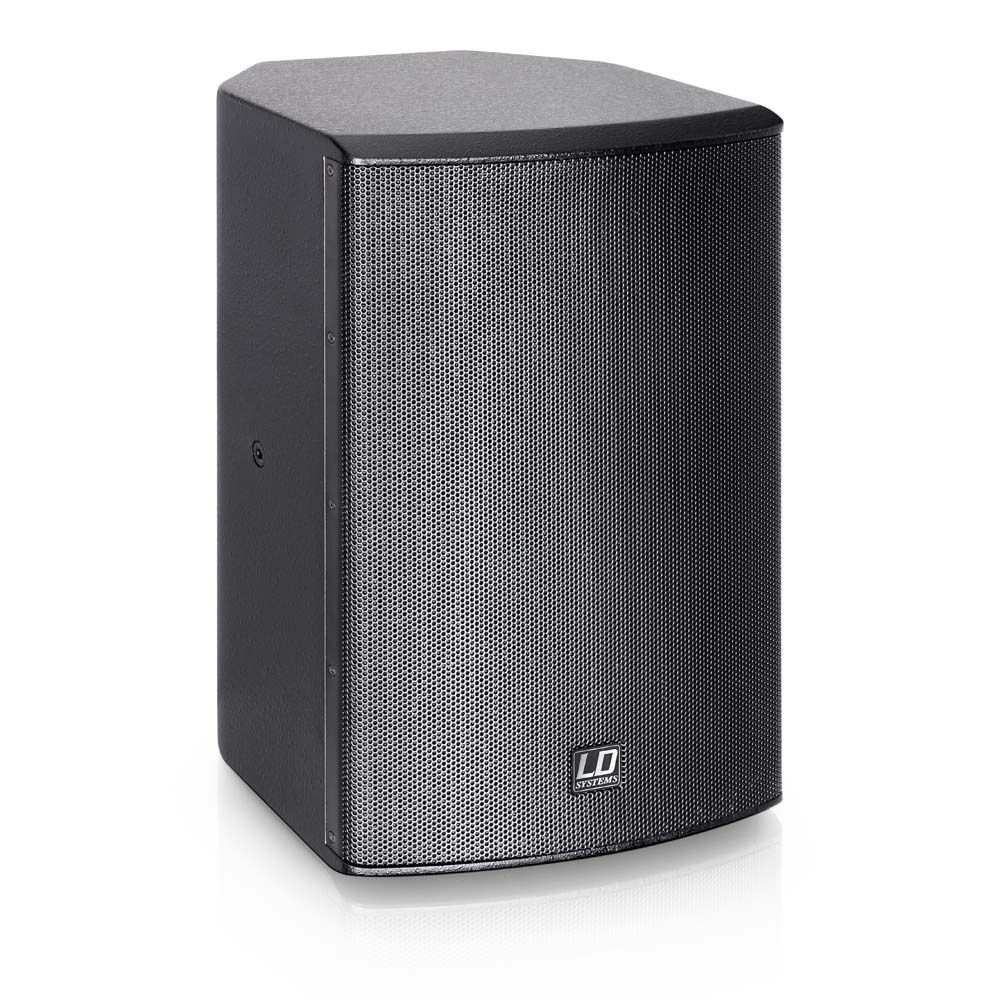

SAT 82 A G2

Manufacturer
LD Systems
Model
LDSAT82AG2
Code
GW-NJNQQO
Data status
Level 1 / 3
From open sources

❋ Specs

11
Frequency range
frequency_range_hz
50-20000Hz
1
Horizontal coverage
horizontal_coverage_deg
60°
1
Vertical coverage
vertical_coverage_deg
60°
1
Connectors
connectors
вход XLR combo, выход XLR
1
Type
type
Активная
1
RMS power
power_rms_w
80W
1
Max SPL
max_spl_db
114dB
1
Drivers
drivers
8" НЧ + 1" ВЧ компрессионный драйвер
1
Amplifier
amplifier
Class A/B
1
Inputs
inputs
1 × XLR combo
1
Outputs
outputs
1 × XLR 3-pin female (link)
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
