✦Lighting

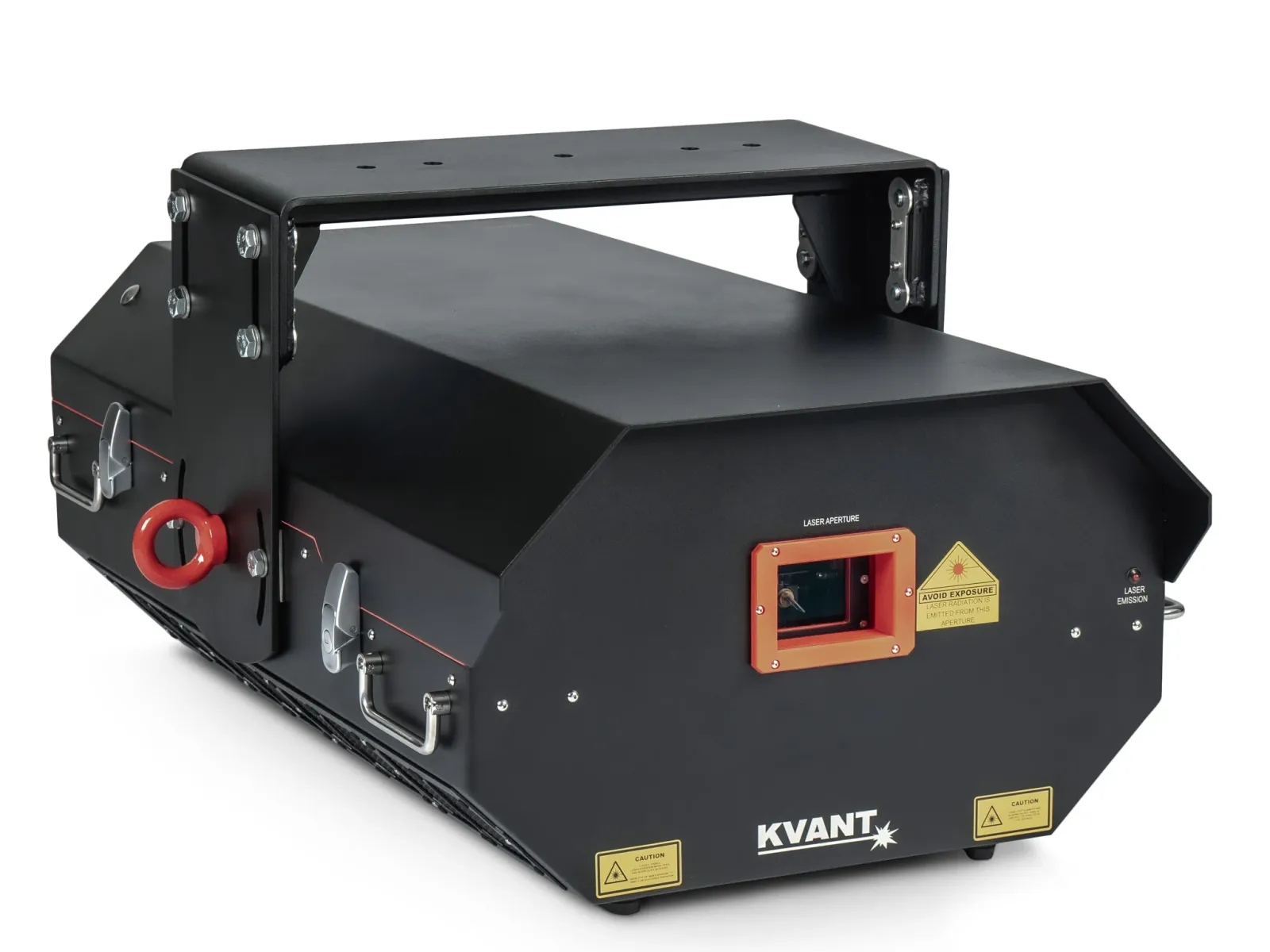

Epic 170

Manufacturer
Kvant
Model
Epic 170
Code
GW-7O3H7B
Data status
Level 1 / 3
From open sources

❋ Specs

13
Total Output Power
total_output_power_w
150W
1
Red Output
red_output_w
30W
1
Green Output
green_output_w
60W
1
Blue Output
blue_output_w
80W
1
Wavelengths
wavelengths_nm
638 / 525 / 465nm
1
Scanner Type
scanner_type
Juno
1
Scan speed
scan_speed_kpps
17 @ 8°kpps
1
Scan angle
scan_angle_deg
40deg
1
Beam divergence
beam_divergence_mrad
1.1mrad
1
Beam diameter
beam_diameter_mm
10 x 12mm
1
Control interface
control_interface
FB4-SK (Ethernet, ArtNet)
1
Power consumption
power_consumption_w
<1800W
1
Weight
weight_kg
89kg
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
