✦Lighting

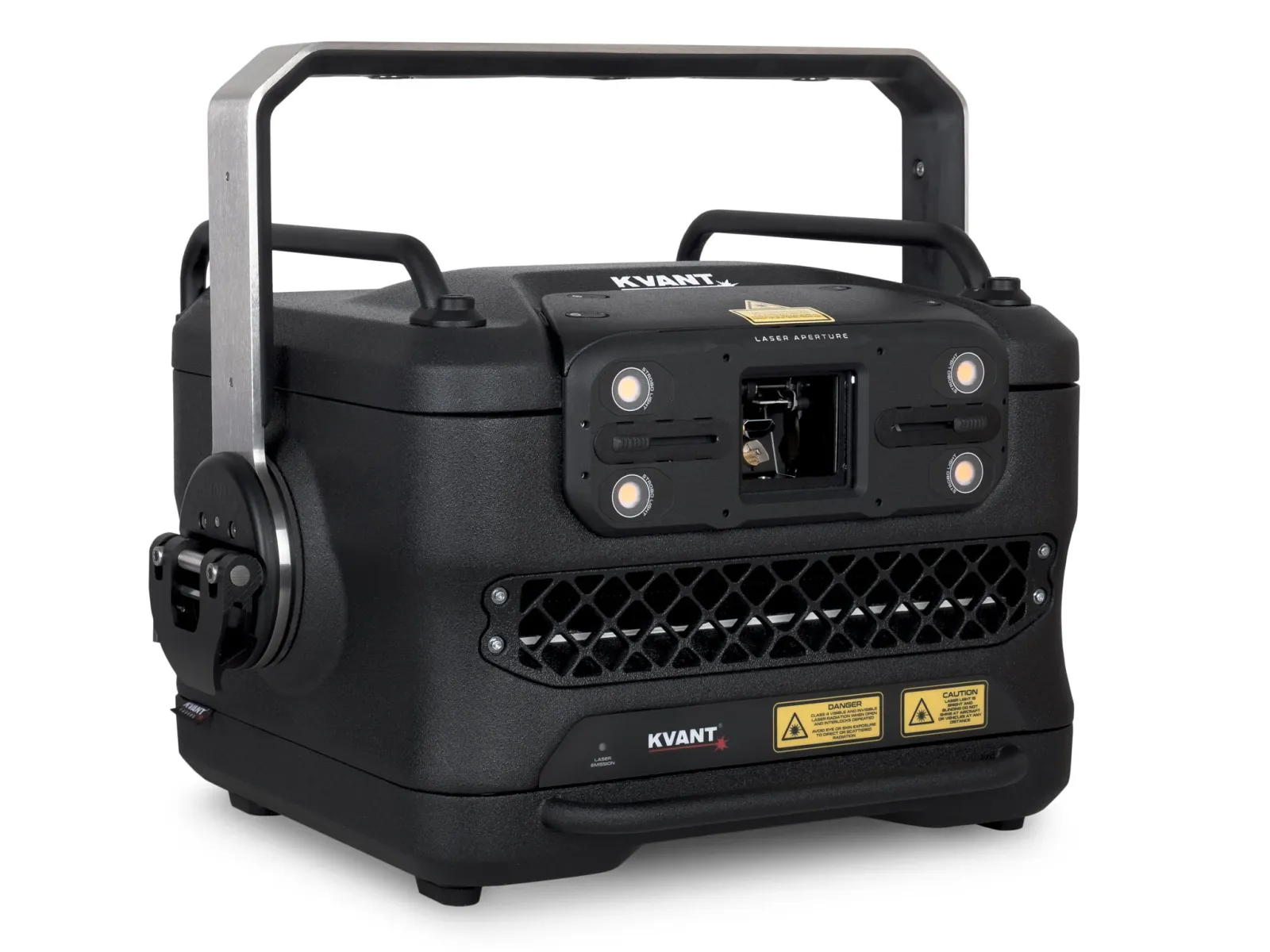

Atom 42

Manufacturer
Kvant
Model
Atom 42
Code
GW-3NZ0GS
Data status
Level 1 / 3
From open sources

❋ Specs

23
Total Output Power
total_output_power_w
42W
1
Red Output
red_output_w
9W
1
Green Output
green_output_w
13W
1
Blue Output
blue_output_w
20W
1
Wavelengths
wavelengths_nm
638 / 525 / 455nm
1
Scanner Type
scanner_type
Juno 5
1
Scan speed
scan_speed_kpps
30 @ 8°kpps
1
Scan angle
scan_angle_deg
50deg
1
Beam divergence
beam_divergence_mrad
1.1mrad
1
Beam diameter
beam_diameter_mm
7 x 7mm
1
Control interface
control_interface
FB4-SK (Ethernet, ArtNet, DMX)
1
Power consumption
power_consumption_va
1200VA
1
Weight
weight_kg
31kg
1
Dimensions
dimensions_mm
445 x 314 x 398mm
1
Power
power_w
42W
1
Wavelength
wavelength_nm
638/525/455 (R/G/B)nm
1
Scanning Angle Deg
scanning_angle_deg
50deg
1
Connectors
connectors
Neutrik powerCON TRUE1
1
Inputs
inputs
Ethernet, ArtNet, DMX512 (FB4-SK controller)
1
Colours
colours
RGB (full-colour)
ILDA
ilda
Yes (ILDA in/out, Ethernet, ArtNet, DMX via FB4-SK)
Laser power
laser_power_mw
42000mW
Safety class
safety_class
Class 4 (EN 60825-2)

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
