✦Point Source / Full-Range

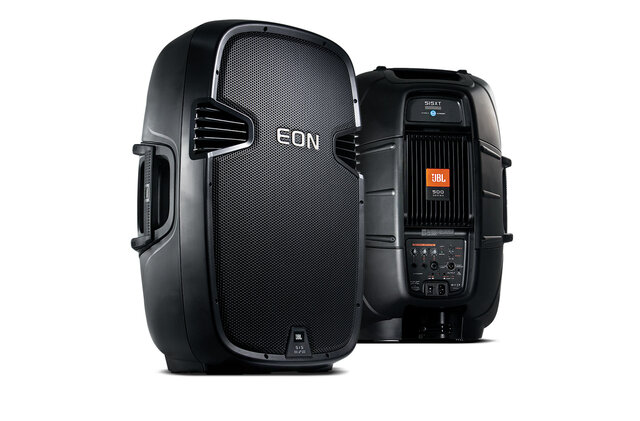

EON515XT

Manufacturer
JBL Professional
Model
EON515XT
Code
GW-HRMMDP
Data status
Level 1 / 3
From open sources

❋ Specs

9
Frequency range
frequency_range_hz
39-20000Hz
1
Max SPL
max_spl_db
132dB
1
Power
power_w
625W
1
Horizontal coverage
horizontal_coverage_deg
100°
1
Vertical coverage
vertical_coverage_deg
60°
1
Drivers
drivers
15" 265F-1 Differential Drive + 1" 2414H compression driver
1
Connectors
connectors
2 x 1/4" TRS, 1 x XLR/1/4" combo with XLR loop-through
1
Dimensions
dimensions_mm
673 x 406 x 368mm
1
Weight
weight_kg
14.8kg
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
