✦Moving Head (Spot/Wash/Beam)

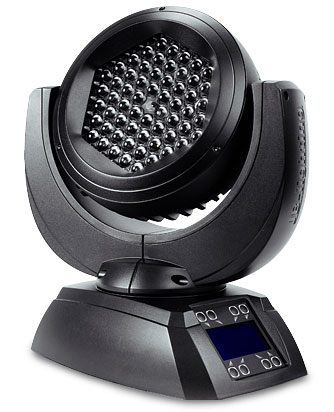

JBLED A4

Manufacturer
JB-Lighting
Model
JBLED A4
Code
GW-UB5XVM
Data status
Level 1 / 3
From open sources

❋ Specs

10
Light source
light_source
60 Luxeon high power LED (21 R, 21 G, 18 B)
1
Zoom range
zoom_range_deg
12-36deg
1
Pan / Tilt
pan_tilt_deg
450 / 330deg
1
Weight
weight_kg
8.8kg
1
Dimensions
dimensions_mm
320 x 370 x 200mm
1
LED count
led_count
60pcs
1
Input voltage
input_voltage_v
90-240V
1
CCT range
cct_range_k
2900-6000K
1
Control protocols
control_protocols
DMX-512, built-in wireless DMX
1
Connectors
connectors
3-pin and 5-pin XLR
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
