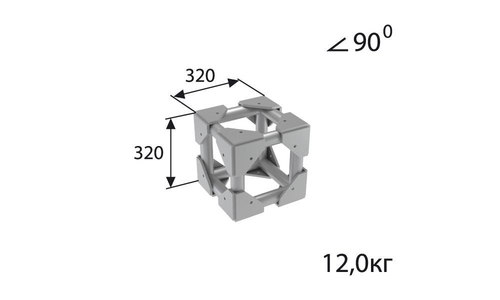

✦Truss: Straight / Corners

Qub1

Manufacturer
Imlight
Model
001-02595
Code
GW-60P9YC
Data status
Level 1 / 3
From open sources

❋ Specs

8
Dimensions
dimensions_mm
320x320x320mm
1
Flange Size
flange_size_mm
300x300x10mm
1
Mounting Size
mounting_size_mm
180x180, M10mm
1
Weight
weight_kg
12kg
1
Connection
connection
M10, 180x180 mm; bolt M10x35 DIN912 8.8, 4 sets
1
Application
application
junction cube for 6 Q1 trusses at 90 degrees
1
Catalog position
catalog_pos
001-02595
1
Key features
key_features
flange 300x300x10 mm, mounting hole d11 mm
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
