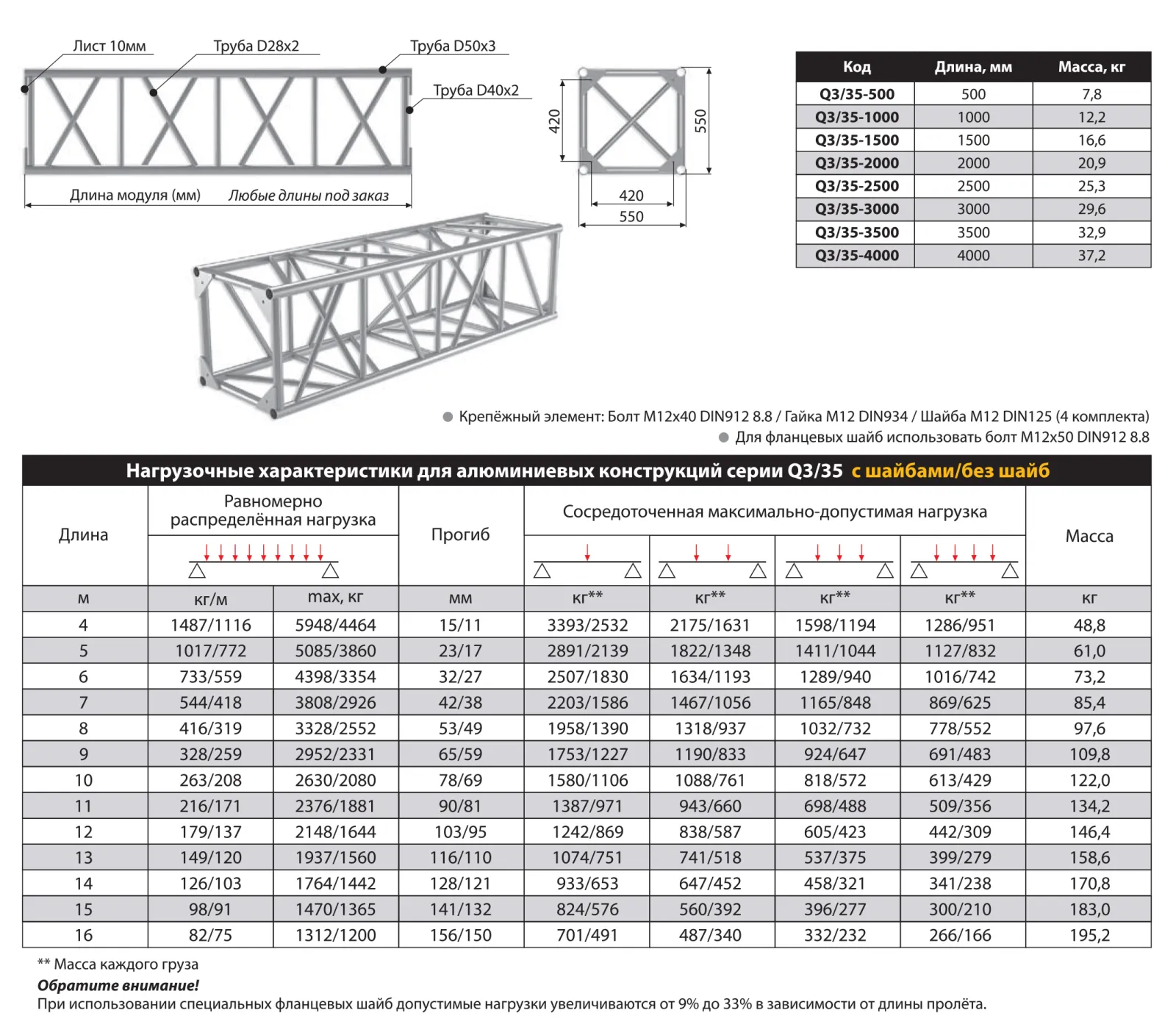

✦Truss: Straight / Corners

Q3/35

Manufacturer
Imlight
Model
Q3/35
Code
GW-SP5JYS
Data status
Level 1 / 3
From open sources

❋ Specs

6
Cross section
cross_section_mm
550x550mm
1
Chord Tube
chord_tube_mm
d50x3mm
1
Mounting Size
mounting_size_mm
420x420, M12mm
1
Alloy
alloy
AD35T1 (6082T6)
1
Connection
connection
M12; bolt M12x40 DIN912 8.8, 4 sets (not included)
1
Application
application
rectangular truss series: straight, radial and cube junction modules
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
