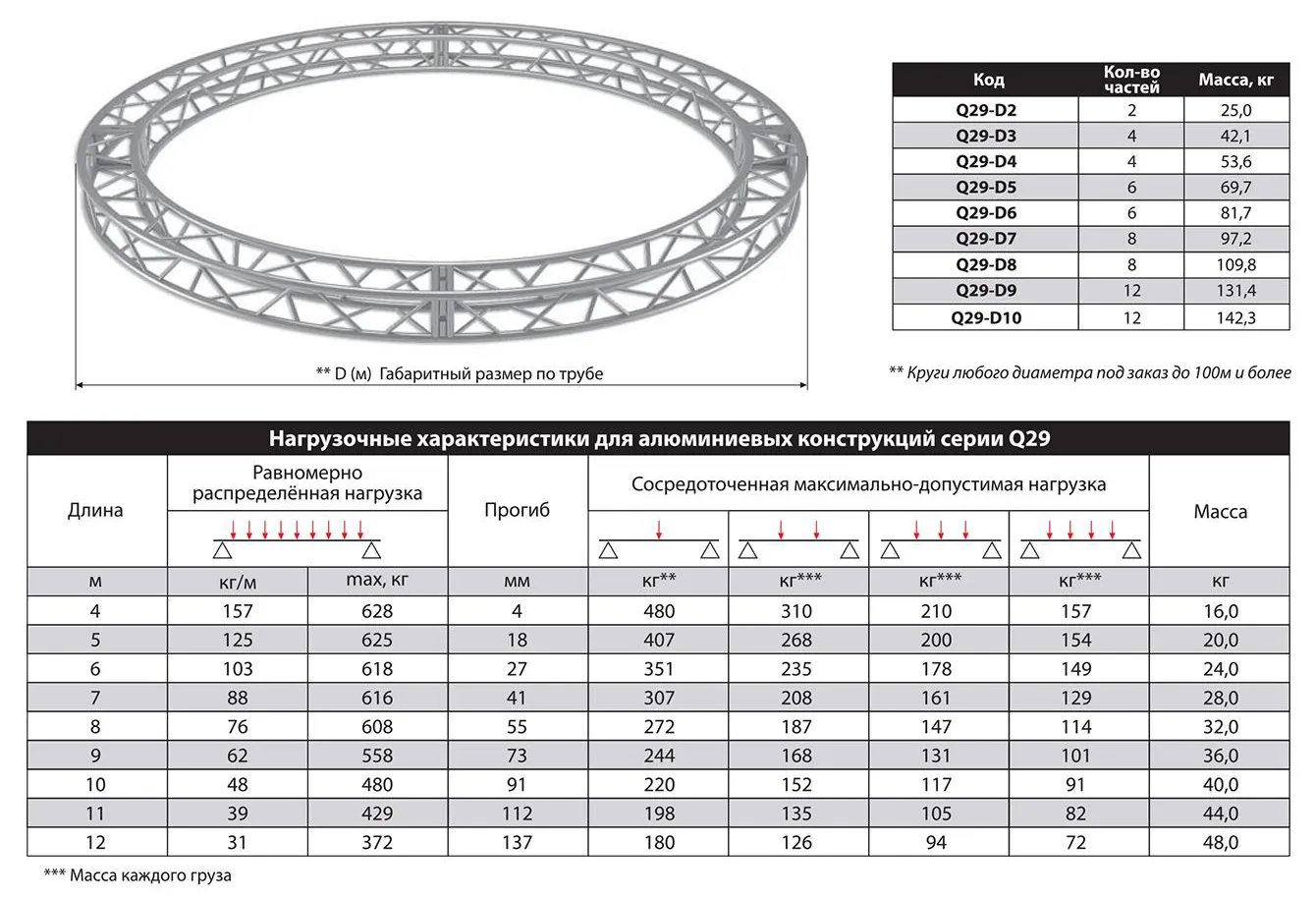

✦Truss: Straight / Corners

Q29-D6

Manufacturer
Imlight
Model
003-04948
Code
GW-LHZTFI
Data status
Level 1 / 3
From open sources

❋ Specs

8
Cross section
cross_section_mm
290x290mm
1
Material
material
алюминий
1
Connection
connection
крепёж 180x180 мм, М10
1
Weight
weight_kg
81.7kg
1
Alloy
alloy
AD31T1
1
Key features
key_features
chord tube d40x2, brace d16x2, six segments, circle diameter 6 m
1
Wall thickness
wall_thickness_mm
2mm
1
Catalog position
catalog_pos
003-04948
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
