✦Chain Hoists & Motors

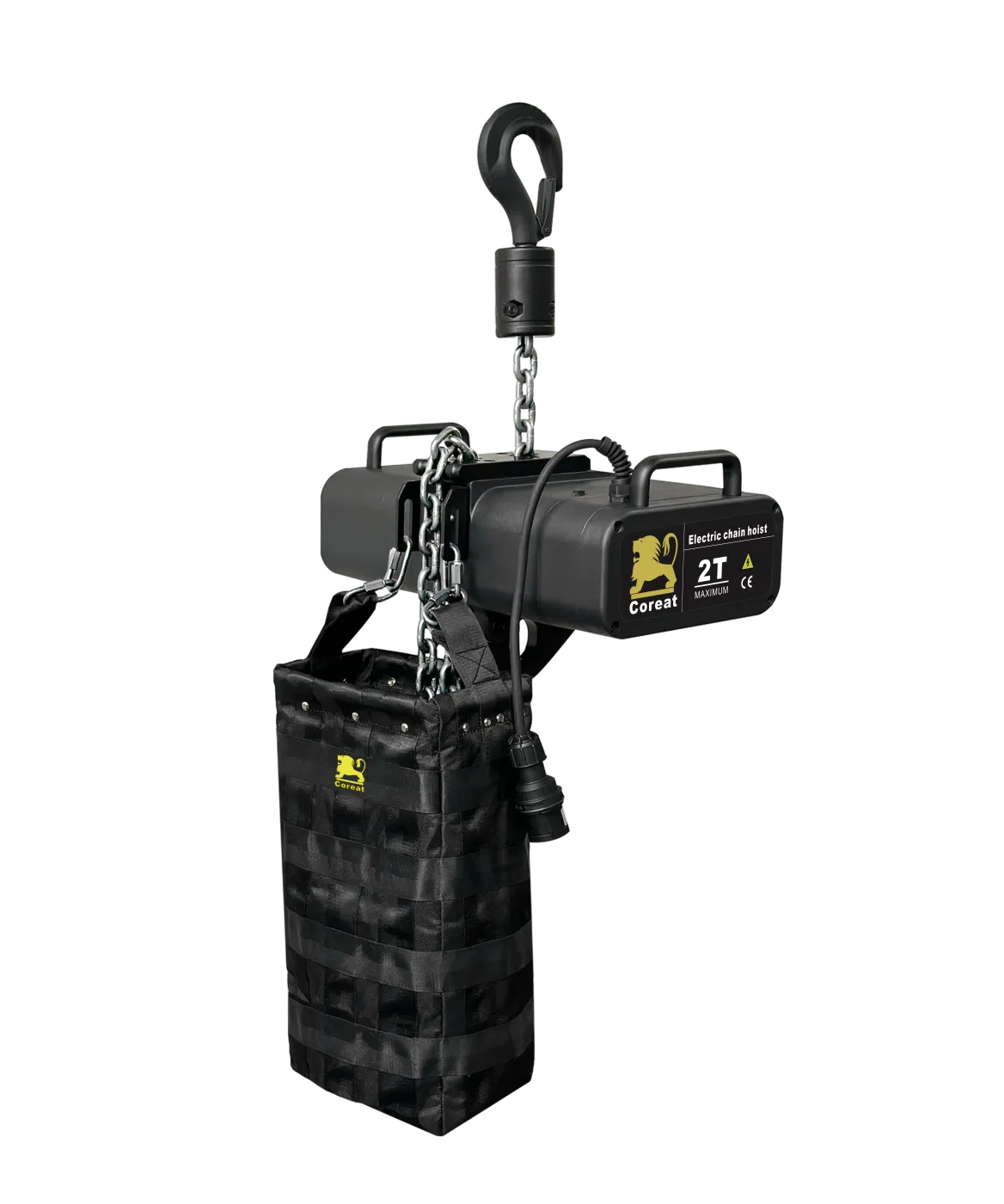

C20 D8 Plus

Manufacturer
Guangzhou Coreat Stage Equipment
Model
C20 D8 Plus
Code
GW-5SRSCO
Data status
Level 1 / 3
From open sources

❋ Specs

9
Capacity (WLL)
capacity_kg
2000kg
1
Lifting speed
lifting_speed_m_min
4m/min
1
Power
power_w
1800W
1
Weight
weight_kg
67kg
1
Safety factor
safety_factor
8
1
Motor voltage
motor_voltage
AC 220V/400V 3P, 50-60 Hz
1
Chain size
chain_size_mm
10x30
1
Dimensions
dimensions_mm
555x315x155mm
1
Features
features
IP66, insulation class F, double brake, clutch overload protection
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
