✦Audio

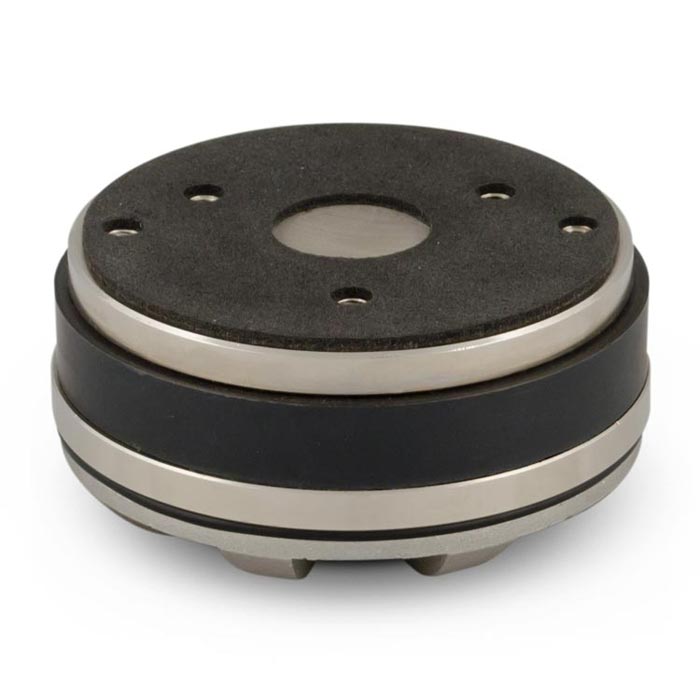

CD-140

Manufacturer
Fane Pro Audio
Model
CD-140
Code
GW-8SBRYY
Data status
Level 1 / 3
From open sources

❋ Specs

9
Throat Diameter In
throat_diameter_in
1inch
1
Power (AES)
power_aes_w
40W
1
Nominal impedance
nominal_impedance_ohm
8ohm
1
Voice coil diameter
voice_coil_diameter_mm
44mm
1
Sensitivity
sensitivity_db
105dB (1W/1m)
1
Frequency range
frequency_range_hz
2000-18000Hz (-6dB)
1
Diaphragm Material
diaphragm_material
Titanium
1
Magnet type
magnet_type
Ferrite
1
Weight
weight_kg
1.54kg
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
