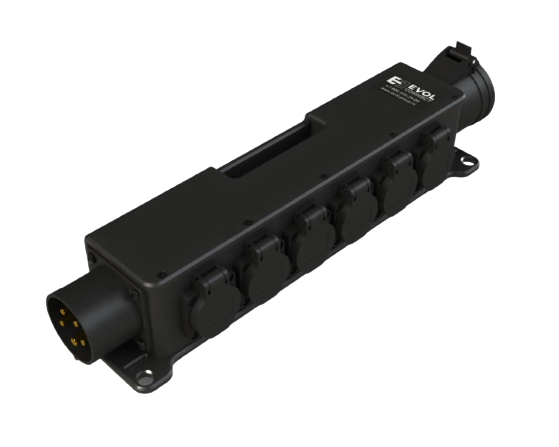

COLIBRI 0256-060-482-0-b

Manufacturer
EVOL
Model
0256-060-482-0-b
Code
GW-PG7MEP
Data status
Level 1 / 3
From open sources

❋ Specs

9
Input connector
input_connector
CEE 32A/380V/5p IP44
1
Output connectors
output_connectors
CEE 32A/380V/5p IP44 x1; Schuko 16A/220V IP54 x6
1
Outputs
output_count
7
1
Rated current
rated_current_a
32-63A
1
Input voltage
input_voltage_v
220/380V
1
Dimensions
dimensions_mm
436x105x101mm
1
Enclosure rating
enclosure_rating
IP44, IK08
1
Housing material
housing_material
ударопрочный пластик 8 мм
1
Color
color
чёрный
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
