✦Lighting

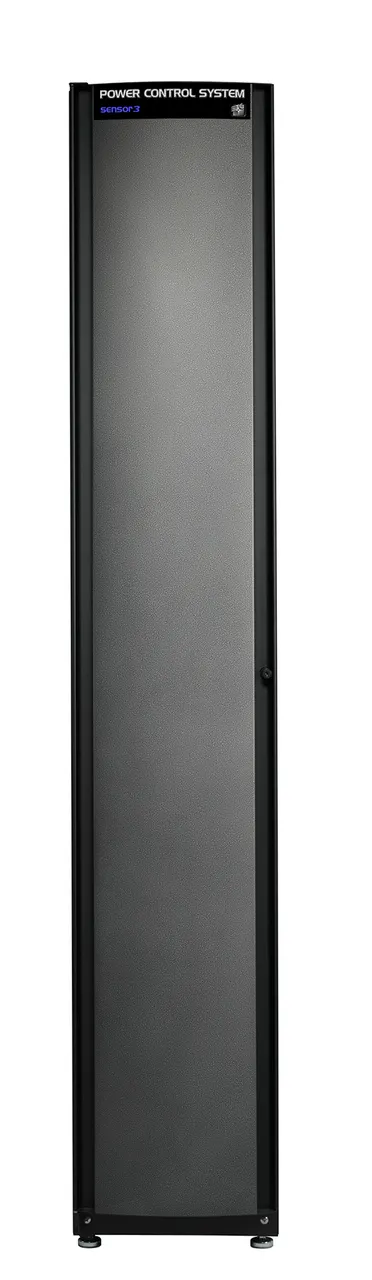

Sensor3 SR3-48

Manufacturer
ETC
Model
SR3-48
Code
GW-CCULST
Data status
Level 1 / 3
From open sources

❋ Specs

11
Module Slots
module_slots
48
1
Max Dimmers
max_dimmers
96
1
Max Dimmer Power Per Module Kw
max_dimmer_power_per_module_kw
2.4kW
1
Primary Feed Rating
primary_feed_rating_a
800A
1
Input voltage
input_voltage_v
120/208 three-phaseVAC
1
Line Frequency Hz
line_frequency_hz
47-63Hz
1
Control
control
Two DMX512-A inputs, Net3/sACN Ethernet (CEM3 controller)
1
Short Circuit Current Rating
short_circuit_current_rating_a
100000A RMS
1
Operating temperature
operating_temperature_c
0-40C
1
Dimensions
dimensions
2110 H x 376 W x 580 Dmm
1
Weight
weight_kg
100kg
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
