✦Lighting Consoles

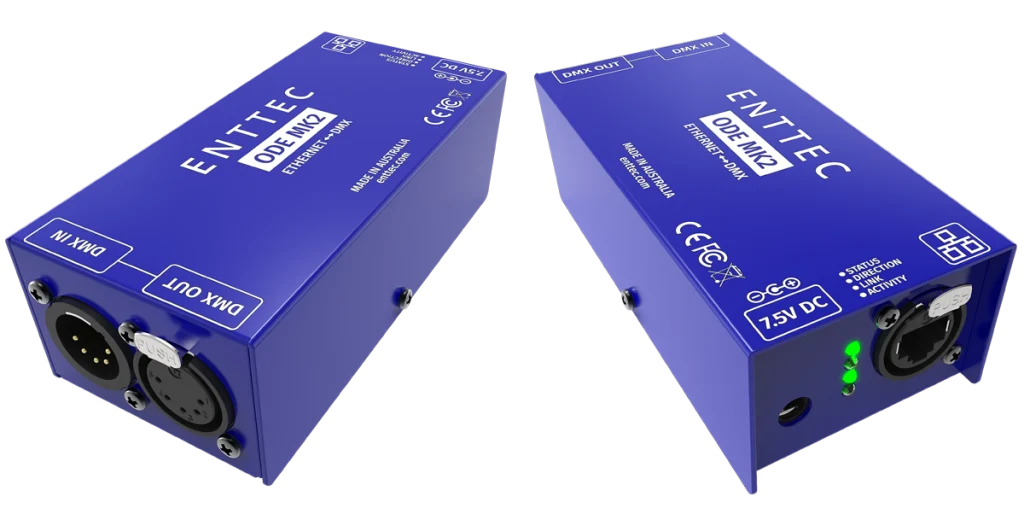

ODE Mk2

Manufacturer
Enttec
Model
70405
Code
GW-HZQACZ
Data status
Level 1 / 3
From open sources

❋ Specs

9
DMX universes
dmx_universes
1
1
Protocols
protocols
Art-Net, sACN, ESP, DMX512A, RDM
1
Input voltage
input_voltage_v
7-12V
1
Power consumption
power_consumption_w
5.6W
1
Connectors
connectors
RJ45 EtherCon, XLR5 male, XLR5 female, DC jack
1
Operating temperature
operating_temperature_c
0-50°C
1
DMX channels
dmx_channels
512ch
1
Weight
weight_kg
0.26kg
1
Dimensions
dimensions_mm
130x40x60mm
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
