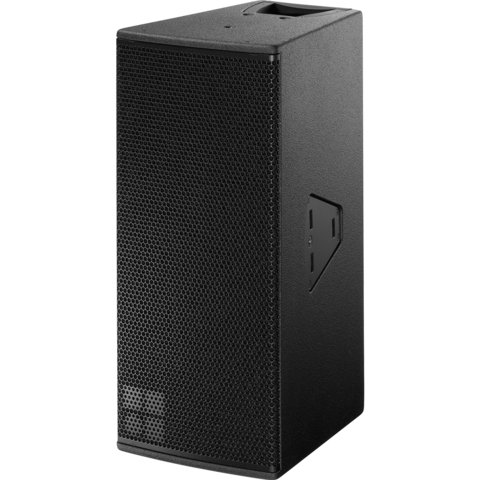

✦Point Source / Full-Range

Y7P

Manufacturer
d&b audiotechnik
Model
Y7P
Code
GW-RFSZKK
Data status
Level 1 / 3
From open sources

❋ Specs

10
Dispersion
dispersion_deg
75x40°
1
RMS power
power_rms_w
400W
1
Peak power
power_peak_w
1600W
1
Frequency range
frequency_range_hz
59-18000Hz
1
Max SPL
max_spl_db
137dB
1
Dimensions
dimensions_mm
257x580x341mm
1
Weight
weight_kg
18kg
1
Drivers
drivers
2x 8" LF neodymium + 1.4" exit HF compression driver
1
Connectors
connectors
speakon NLT4 F/M
1
Configuration
configuration
2-way dipolar passive, rotatable CD horn
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
