✦Stage Monitors

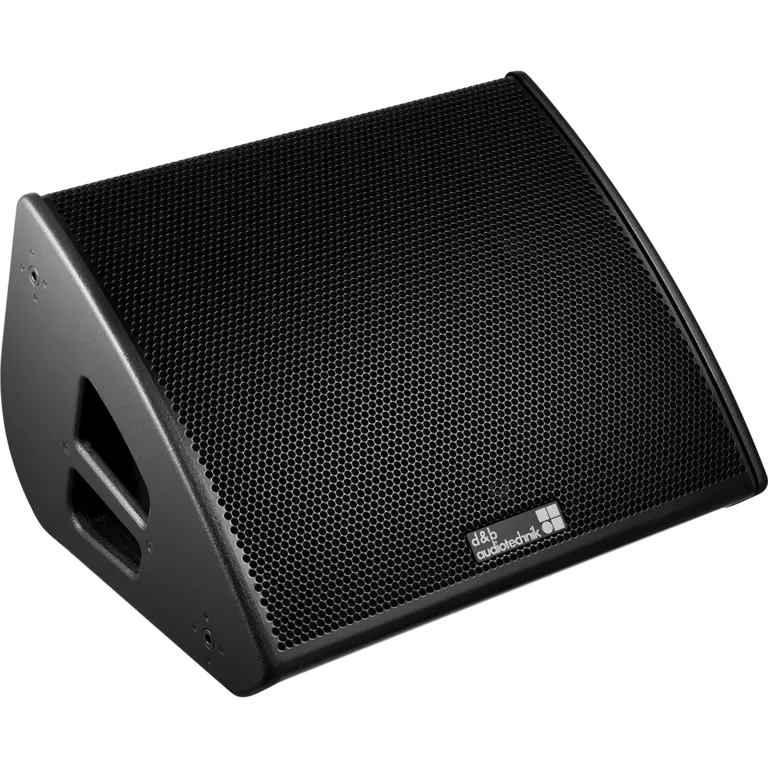

M2

Manufacturer
d&b audiotechnik
Model
Z0061
Code
GW-07UMQB
Data status
Level 1 / 3
From open sources

❋ Specs

11
Configuration
configuration
2-way stage monitor
1
Drivers
drivers
2 x 12" LF + 1.4" compression driver
1
Frequency range
frequency_range_hz
50-17000Hz
1
Max SPL
max_spl_db
143dB
1
Dispersion
dispersion_deg
45 x 60°
1
Nominal impedance
nominal_impedance_ohm
4/8Ω
1
RMS power
power_rms_w
500W
1
Peak power
power_peak_w
2000W
1
Connectors
connectors
2 x NLT4 F/M
1
Dimensions
dimensions_mm
419 x 680 x 560mm
1
Weight
weight_kg
38kg
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
