✦Line Arrays

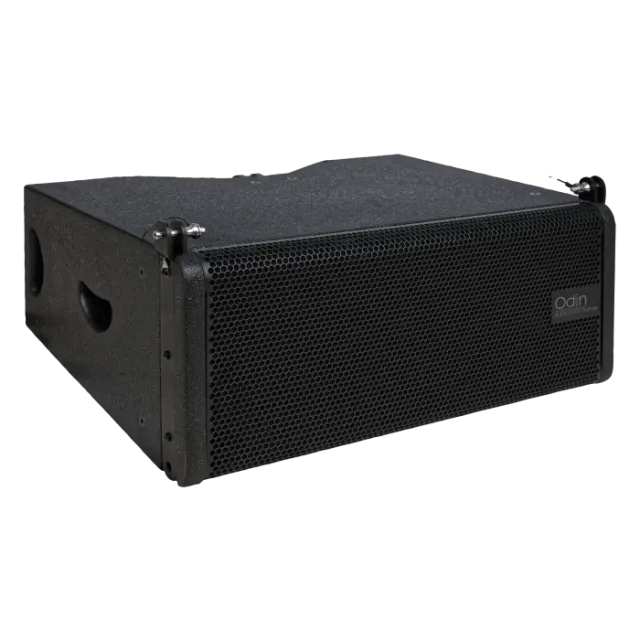

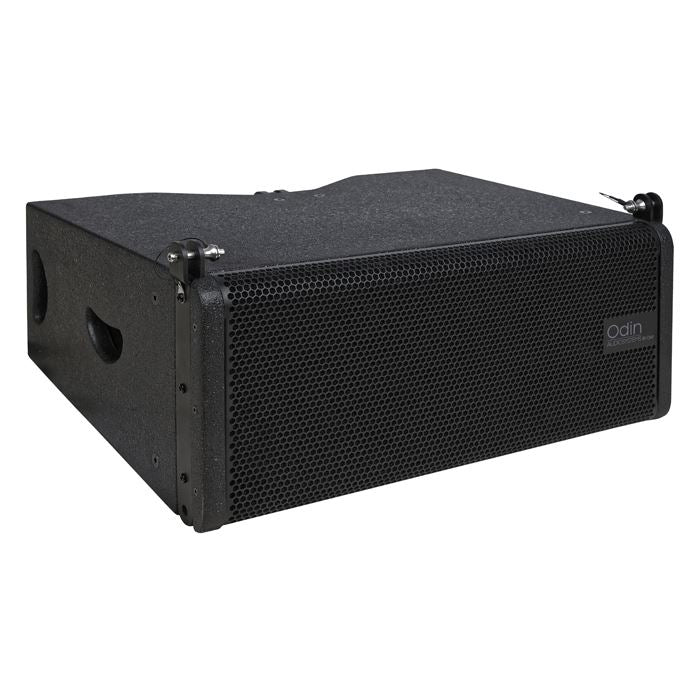

DAP Odin T-8A

Manufacturer
DAP Audio
Model
D3900
Code
GW-UIGGLL
Data status
Level 1 / 3
From open sources

❋ Specs

11
Power
power_w
800W
1
Max SPL
max_spl_db
129dB
1
Drivers
drivers
2x 8" Celestion Neodymium + 2x 1" Celestion Neodymium compression
1
Configuration
configuration
2-way, bi-amp
1
Frequency range
frequency_range_hz
70-19000Hz
1
Horizontal coverage
horizontal_coverage_deg
100°
1
Vertical coverage
vertical_coverage_deg
10°
1
Weight
weight_kg
22.5kg
1
Dimensions
dimensions_mm
637 x 468 x 300mm
1
Amplifier
amplifier
Bi-amp, Class D 650 W LF + Class AB 150 W HF
1
Connectors
connectors
XLR 3-pin IN/OUT, RJ45, powerCON IN/OUT
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
