✦Subwoofers

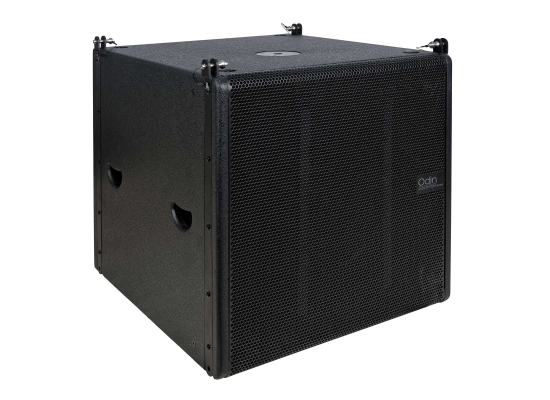

DAP Odin S-18A

Manufacturer
DAP Audio
Model
DAP Odin S-18A
Code
GW-SZF59X
Data status
Level 1 / 3
From open sources

❋ Specs

9
RMS power
power_rms_w
1500W
1
Peak power
power_peak_w
6000W
1
Max SPL
max_spl_db
136dB
1
Frequency range
frequency_range_hz
41-110Hz
1
Drivers
drivers
1 x 18" Celestion, ferrite, 4" voice coil
1
Amplifier
amplifier
Class D 1500 W continuous / 6000 W peak
1
Weight
weight_kg
58.5kg
1
Dimensions
dimensions_mm
700 x 634 x 665mm
1
Connectors
connectors
XLR 3-pin IN/OUT, RJ45 data, powerCON IN/OUT
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
