✦Media Servers

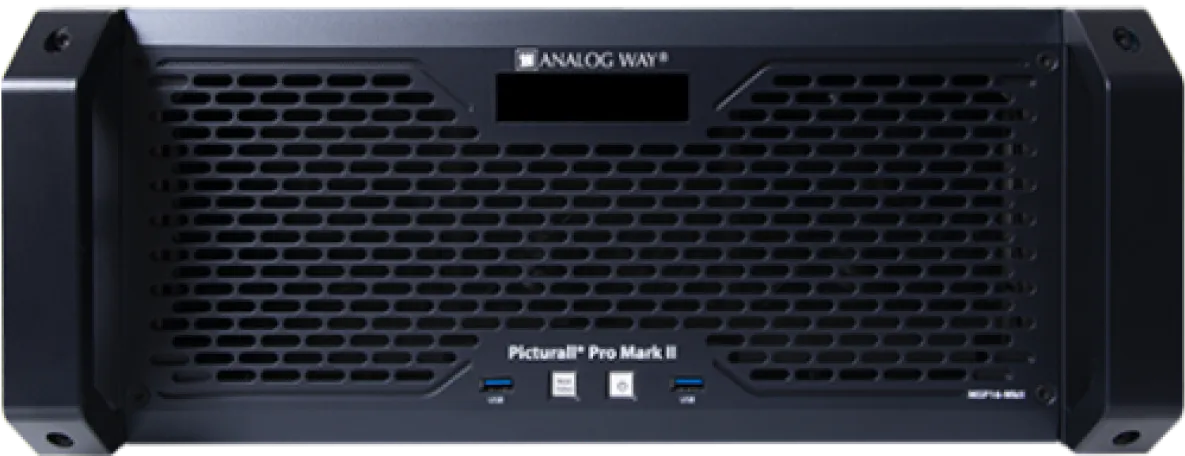

Picturall Pro Mark II

Manufacturer
Analog Way
Model
Picturall Pro Mark II
Code
GW-BBX34X
Data status
Level 1 / 3
From open sources

❋ Specs

9
Inputs
inputs
up to 24 (HDMI 1.4/2.0, 3G-SDI, via up to 6 input cards)
1
Outputs
outputs
up to 16 (DisplayPort 1.2, via up to 4 output cards)
1
Max resolution
max_resolution
4096x2160 @60Hz, 10-bit 4:4:4 output; up to 16K canvas playback (AWX codec)
1
Connectors
connectors
DisplayPort 1.2 (output), HDMI/3G-SDI (input), dual 10Gb/s Ethernet
1
Storage
storage
2x 1TB PCIe-NVMe RAID (expandable up to 32TB)
1
Weight
weight_kg
24.5kg
1
Power
power_w
660W
1
Dimensions
dimensions_mm
482x177x694mm
1
Rack units
rack_units
4RU
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
